15HP LEESON 1760RPM 254JM TEFC 3PH MOTOR G151568

LEESON 151568.60 has been superseded by G151568.60

Catalog Number:  G151568.60
Description:  15HP,1760RPM,254JM,TEFC,3PH,60HZ,JM PUMP
Ship Weight:  287 lbs.

This LEESON Motor Can ONLY Ship Ground Freight
For expedited needs please contact our sales team.

LEESON Three Phase Electric Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump Shaft.

Mechanical Features:

  • Totally enclosed fan cooled construction, for maximum life in dirty or severe environments
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Drip covers are available as accessory kist for 143-5JM and 182-4JM motors
  • Some 182-4JM frame motors have enclosed endshields as standard with frame vents meeting the 12* drip-proof requirement
  • No drip cover is needed, or shown in the table, for these motors

Electrical Features:

  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation



Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 40-36.5 F.L. Amps 18.3 F.L. Amps 30.5/15.2
S. F Amps 44.5-41 S. F Amps 20.5 S. F Amps 34/17
RPM 1800 Hertz 60/50
HP 15 Duty CONTINUOUS TYPE TF
KW 11.2 Model Number A254T17FK12AA
Frame 254JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75%   PF 84
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6308
CC Number CC005A CE Yes Bearing PE 6309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 287 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 80307 Mounting RIGID Rotation REV

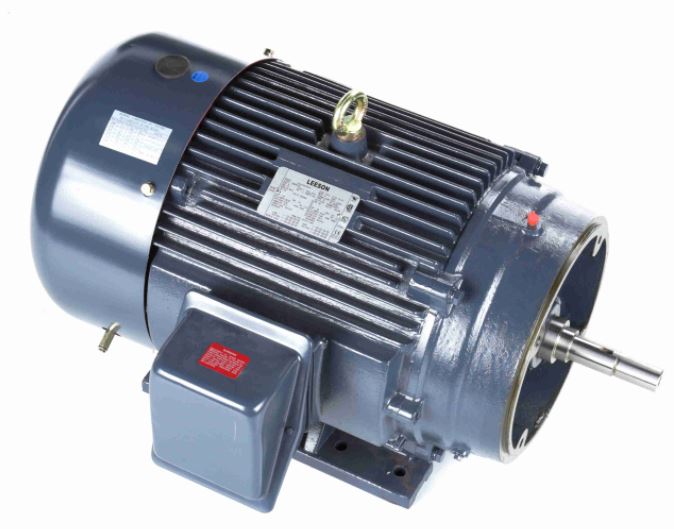

15HP LEESON 1760RPM 254JM TEFC 3PH MOTOR G151568
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G151568.60
Stock # G151568
