15HP LEESON 3450RPM 254JM TEFC 3PH PUMP MOTOR G151567.60

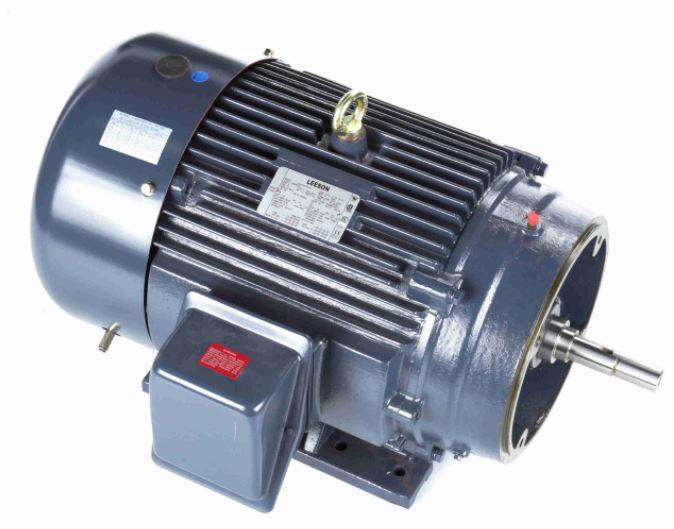

Picture is for reference only.

Part Number:

G151567.00

Model/Spec Number:

C254T34FK11A

Manufacturer:

Leeson Obsolete

G151567.60 LEESON 15HP Three Phase Electric Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

175 lbs

Dimensions:

16 x 36 x 16 inches

HS Code:

8501.52.4000

Technical Details

Specifications

Brand:	Leeson
Application:	Closed Coupled
Output HP:	15//10
Output KW:	11//7.5
Output RPM:	3450//2950
Frame Size NEMA:	254JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP54
Voltage:	230/460//190/380

Documentation

Motor Drawing

Additional Information

Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	38.3-35	F.L. Amps	17.5	F.L. Amps	29/14.5
S. F Amps	40.4	S. F Amps	20.2	S. F Amps	33/16.5
RPM	3600	Hertz	60/50
HP	15	Duty	CONTINUOUS	TYPE	TF
KW	11.2	Model Number	C254T34FK11 A
Frame	254JM	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	G
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	90.2	Eff 75%		PF	89
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6308
CC Number	CC005A	CE	Yes	Bearing PE	6309
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	171 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	004172.01	Mounting	RIGID	Rotation	REV
