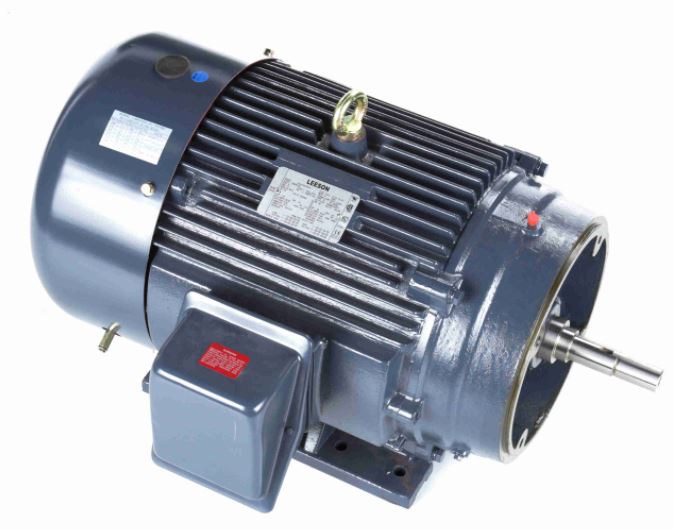

40HP LEESON 3550RPM 286JM TEFC 3PH MOTOR G151424.60

Picture is for reference only.

Part Number:

G151424.60

Model/Spec Number:

C286T34FK16

Manufacturer:

Leeson Obsolete

G151424.60 LEESON 40HP Three Phase Electric Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

460 lbs

Dimensions:

26 x 42 x 26 inches

HS Code:

8501.52.0000

Technical Details

Specifications

Brand:	Leeson
Application:	Closed Coupled
Output HP:	40
Output KW:	30-35
Output RPM:	3550
Frame Size NEMA:	286JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	230/460//190/380

Documentation

Motor Drawing

Connection Diagram

Additional Information

Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	99.5-90	F.L. Amps	45	F.L. Amps	80/40
S. F Amps	115-104	S. F Amps	52	S. F Amps	92/46
RPM	3600	Hertz	60/50
HP	40	Duty	CONTINUOUS	TYPE	TFC
KW	30	Model Number	C286T34FK13AAA
Frame	286JM	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	G
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	91.7	Eff 75%		PF	90.5
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6309
CC Number	CC005A	CE	Yes	Bearing PE	6311
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	460 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	80307	Mounting	RIGID	Rotation	REV
