25HP LEESON 3510RPM 256JM DP 3PH MOTOR G151382.60

Catalog Number:  G151382.60
Description:  25HP,3510RPM,256JM,DP,3PH,60HZ,JM PUMP
Ship Weight:  295 lbs.

This LEESON Motor Can ONLY Ship Ground!
For expedited needs please contact our sales team for freight options.

LEESON Three Phase Electric Pump Motor designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump Shaft.

Mechanical Features:

  • Open drip-proof construction
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Drip covers are available as accessory kist for 143-5JM and 182-4JM motors

Electrical Features:

  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation



Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 62-57 F.L. Amps 28.5 F.L. Amps 54/27
S. F Amps 71-64 S. F Amps 32 S. F Amps 62/31
RPM 3600 Hertz 60/50
HP 25 Duty CONTINUOUS TYPE TD
KW 18.7 Model Number C256T34DK5A
Frame 256JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75%   PF 90
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6208
CC Number CC005A CE Yes Bearing PE 6309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 295 LB Enclosure DP Lubrication STANDARD
Nameplate 080307 Mounting RIGID Rotation REV

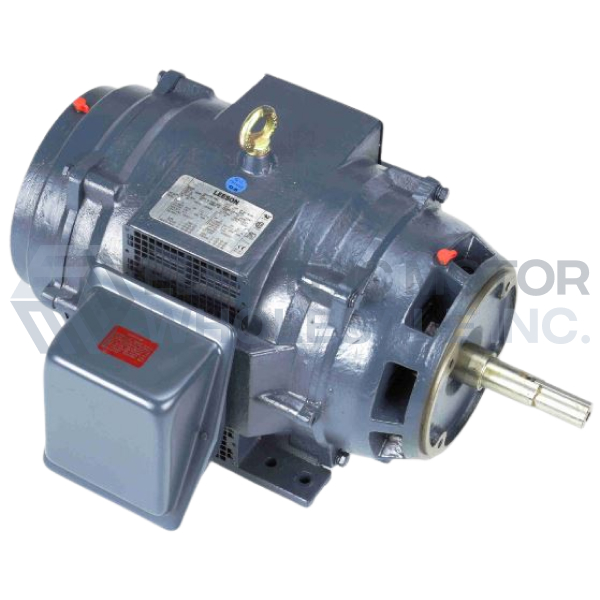

25HP LEESON 3510RPM 256JM DP 3PH MOTOR G151382.60
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: G151382.60
Stock # G151382
Price: $1,114.00
Compare At: $2,811.00
