15HP LEESON 3475RPM 215JM DP 3PH MOTOR G151380

LEESON 151380.60 has been Superseded by G151380.60

LEESON Catalog Number:  G151380.60
Description:  15HP,3475RPM,215JM,DP,3PH,60HZ,JM PUMP
Ship Weight:  202 lbs.

This LEESON Motor Can ONLY Ship Ground!
For expedited needs please contact our sales team for freight options.

LEESON Three Phase DP JM Electric Pump Motors designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump Shaft.

Mechanical Features:

  • Open drip-proof construction
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Drip covers are available as accessory kist for 143-5JM and 182-4JM motors

Electrical Features:

  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 38.5-34.5 F.L. Amps 17.4 F.L. Amps 28/14
S. F Amps 45-40 S. F Amps 19.9 S. F Amps 32/16
RPM 3600 Hertz 60/50
HP 15 Duty CONTINUOUS TYPE TD
KW 11.2 Model Number C215T34DK9A
Frame 215JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 90
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6308
CC Number CC005A CE Yes Bearing PE 6308
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 202 LB Enclosure DP Lubrication STANDARD
Nameplate 080306 Mounting RIGID Rotation REV

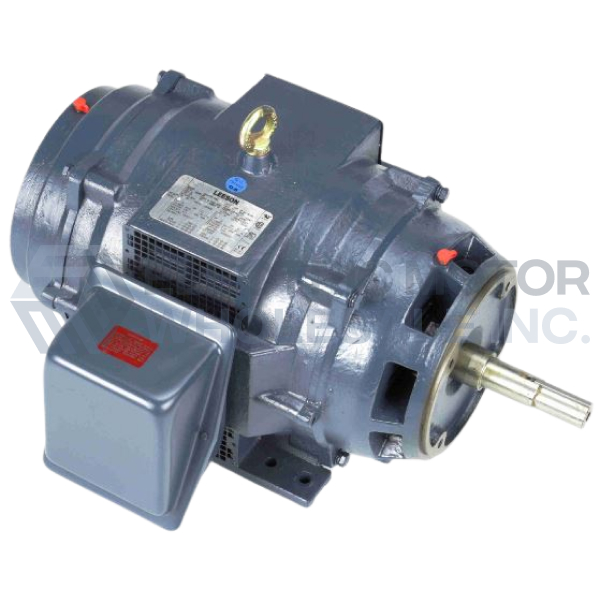

15HP LEESON 3475RPM 215JM DP 3PH MOTOR G151380
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G151380.60
Stock # G151380
