20HP LEESON 1765RPM 256JM DP 3PH ULTIMATE-E PUMP MOTOR G151362.60
20HP LEESON 1765RPM 256JM DP 3PH ULTIMATE-E PUMP MOTOR G151362.60

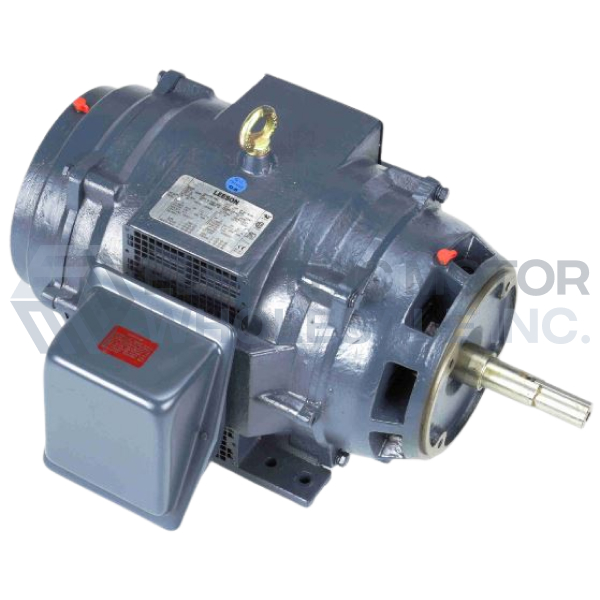

Picture is for reference only.
Part Number:
G151362.60Model/Spec Number:
C256T17DK5Manufacturer:
Leeson ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
60 lbsDimensions:
14 x 22 x 14 inchesHS Code:
8501.52.4000UPC:
691720331415Technical Details
Specifications
Brand: | Leeson |
Application: | Closed Coupled |
Output HP: | 20 |
Output KW: | 14.9 |
Output RPM: | 1765 |
Frame Size NEMA: | 256JM |
Mount NEMA: | C Face With Base |
Enclosure NEMA: | DP |
Enclosure IEC: | IP22 |
Voltage: | 208-230/460 |
Documentation
Additional Information
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 52-48 | F.L. Amps | 24 | F.L. Amps | 44/22 |
| S. F Amps | 60-55 | S. F Amps | 27.5 | S. F Amps | 51/25.5 |
| RPM | 1800 | Hertz | 60/50 | ||
| HP | 20 | Duty | CONTINUOUS | TYPE | TD |
| KW | 14.9 | Model Number | C256T17DK5AA | ||
| Frame | 256JM | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | C | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 91.7 | Eff 75% | PF | 85 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6208 |
| CC Number | CC005A | CE | Yes | Bearing PE | 6309 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 310 LB | Enclosure | DP | Lubrication | STANDARD |
| Nameplate | 080307 | Mounting | RIGID | Rotation | REV |
