15HP LEESON 1765RPM 254JM DP 3PH ULTIMATE-E PUMP MOTOR G151361.60

15HP LEESON 1765RPM 254JM DP 3PH ULTIMATE-E PUMP MOTOR G151361.60

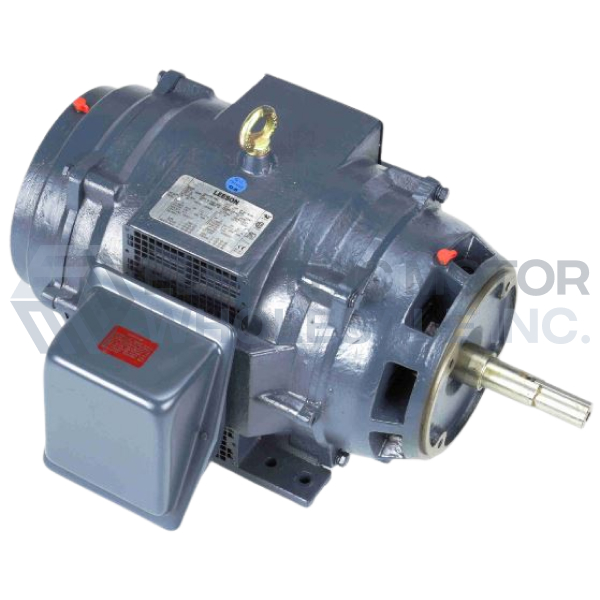

Picture is for reference only.

Part Number:

G151361.00

Model/Spec Number:

C254T17DK7

Manufacturer:

Leeson Obsolete
G151361.60 LEESON 15HP Three Phase Premium JM Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

15

Output KW:

11

Output RPM:

1765

Frame Size NEMA:

254JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

208-230/460

Product Information Packet
