10HP LEESON 850RPM 284T TEFC 3PH PREMIUM MOTOR G150282

Catalog Number:  G150282.22 - FREE Ground Shipping in USA
Model Number:  C284T8FB2
Description:  10HP,850RPM,284T,TEFC,3PH,60HZ
Ship Weight:  346 lbs.

LEESON PREMIUM EFFICIENT Motor carries a three year warranty and is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Features:

  • Durable Cast Iron frame
  • 1 7/8" Keyed output shaft
  • High-quality ball bearings
  • UL Recognized Component Listing and CSA approval.
  • Non-USA Manufactured,CA
Volts 208-230   Volts 460   Volts
FL Amps 32-30   FL Amps 15   FL Amps
SF Amps 35-33   SF Amps 16.5   SF Amps
RPM 900   Hertz 60
HP 10   Duty CONTINUOUS   Type TF
KW 7.50   SF 1.15   Phase 3
Frame 284T   Design B   KVA Code G
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class F   Eff(75%)     PF 70
Eff(100%) 90.2   CSA Y   Bearing OPE 6309
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6311
CC Number CC005A   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 346 LB   Enclosure TEFC   Lubrication POLYREX EM
Nameplate 080307   Mounting RIGID   Rotation REV
Shaft Diam.     Cust Part No.     Packaging B
      Winding T14508003   Carton Label
      Group 3   Iris
Paint BLUE (ENAMEL)   Hazardous Location NONE   Test Card

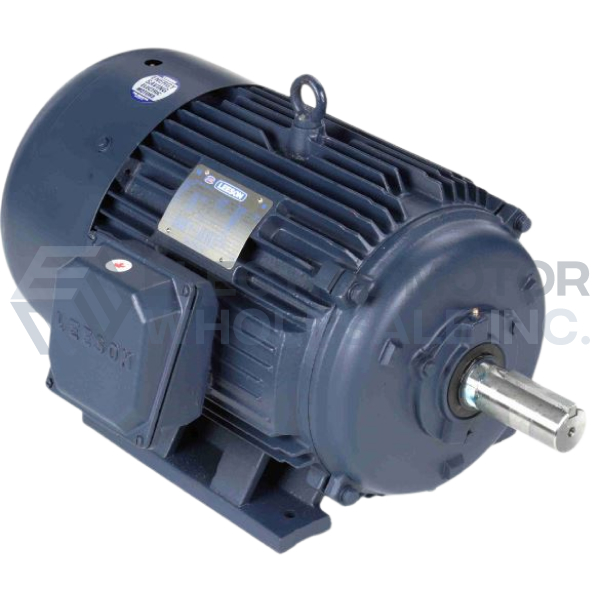

10HP LEESON 850RPM 284T TEFC 3PH PREMIUM MOTOR G150282
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G150282.22
Stock # G150282
Price: $2,417.00
Compare At: $6,103.00
Quantity:
