7.5HP LEESON 3465RPM 213JM TEFC 1PH MOTOR 141281.00

7.5HP LEESON 3465RPM 213JM TEFC 1PH MOTOR 141281.00

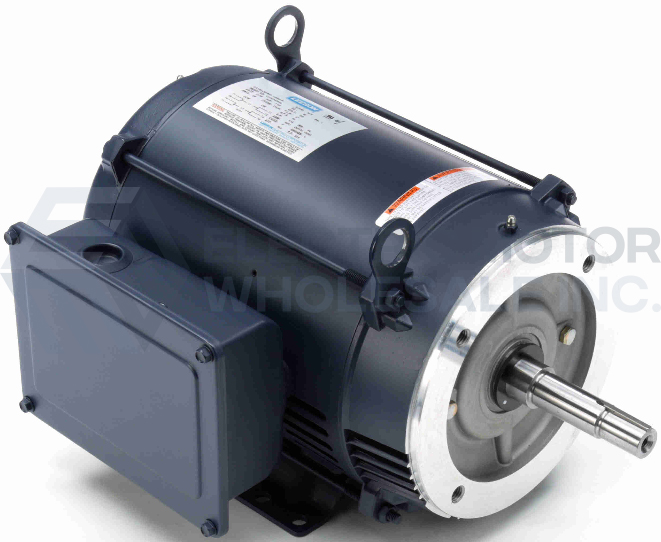

DP 213JM FRAME JM PUMP.jpg

Part Number:

141281.00

Manufacturer:

Leeson Obsolete
141281.00 LEESON 7.5HP SINGLE PHASE TEFC Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump shaft.

Ordering Notes

This item is now obsolete and is superseded by Marathon 213TBFW7010

Item Discontinued

Click below to request an agent review potential options.

Free No Rush Shipping

Weight:

125 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.40.6040

UPC:

691720047958

Technical Details

Application:

Close-Coupled Pump

Output HP:

7.5

Output KW:

5.5

Output RPM:

3465

Frame NEMA:

213JM

Mount NEMA:

C-Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230

Frequency (Hz):

60

Product Information Packet

Leeson Warranty
