10HP LEESON 1745RPM 215T 3PH ECO-AG MOTOR 141146.00

Catalog Number: 141146.00 - FREE Ground Shipping In USA
Model Number: C215T17FB23A
Description:  10HP,1745RPM,215T,TEFC,3PH,ECO-AG
Ship Weight:  176 lbs.

This LEESON Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team

APPLICATIONS: For use where exposure to water, dust and dirt exists. Ideally suited for use Farm / Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders, and other demanding farm duty equipment.


  • Premium efficient
  • 1-1/8" Keyed output shaft
  • Steel frame construction
  • Double sealed ball bearings
  • Shaft flingers
  • Normally closed thermostat protected
  • Weep holes provide condensation drains
  • Footnotes: S,MX
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 28.8-26.8 F.L. Amps 13.4 F.L. Amps 31.2/15.6
S. F Amps 35.2-32.4 S. F Amps 16.2 S. F Amps 36.6/18.8
RPM 1800 Hertz 60/50
KW 7.5 Model # C215T17FB23A
Frame 215T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 77
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number CC005A CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 176 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081400 Mounting RIGID Rotation REV
Assembly   Shaft Dia.   Ext. Diag. 005010.20
10HP LEESON 1745RPM 215T 3PH ECO-AG MOTOR 141146.00

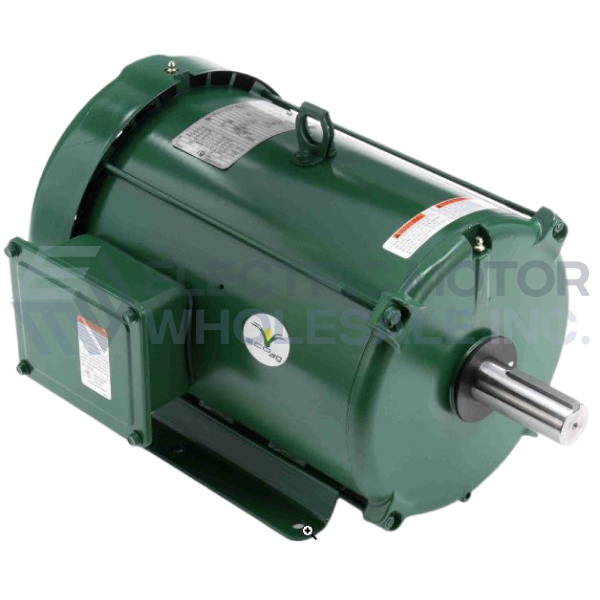

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 141146.00
Stock # 141146
Price: $765.00
Compare At: $1,932.00
