7.5HP LEESON 1740RPM 215TC TEFC 1PH MOTOR 140807.00

Catalog Number:  140807.00
Model Number:  C215K17FK6A
Description:  7.5HP,1740RPM,215TC,TEFC,1PH,60HZ
Ship Weight:  170 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.


  • Durable rolled steel frame
  • 1 3/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • 1 year warranty
Volts 230 Volts   Volts
F.L. Amps 33.6 F.L. Amps   F.L. Amps
S. F Amps 37 S. F Amps   S. F Amps
RPM 1800 Hertz 60
KW 5.60 Model Number C215K17FK6 A
Frame 215TC Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75%   PF 88
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number EXEMPT CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 170.5 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID C Rotation SELECTIVE CCW

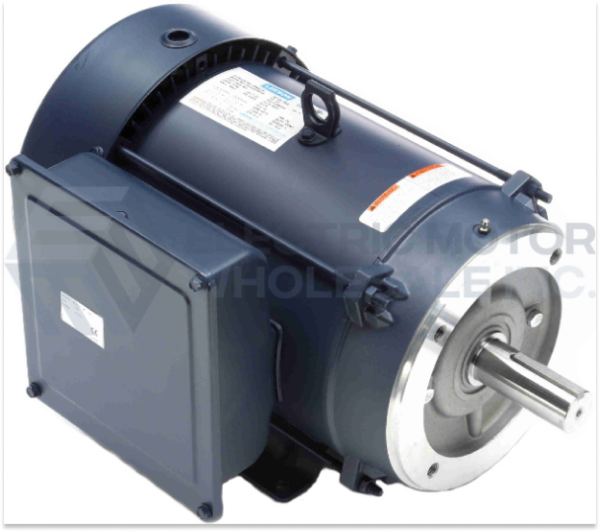

7.5HP LEESON 1740RPM 215TC TEFC 1PH MOTOR 140807.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 140807.00
Stock # 140807
Price: $842.00
Compare At: $2,126.00
