15HP LEESON 3450RPM 215JM TEFC 3PH PUMP MOTOR G140764.00
15HP LEESON 3450RPM 215JM TEFC 3PH PUMP MOTOR G140764.00

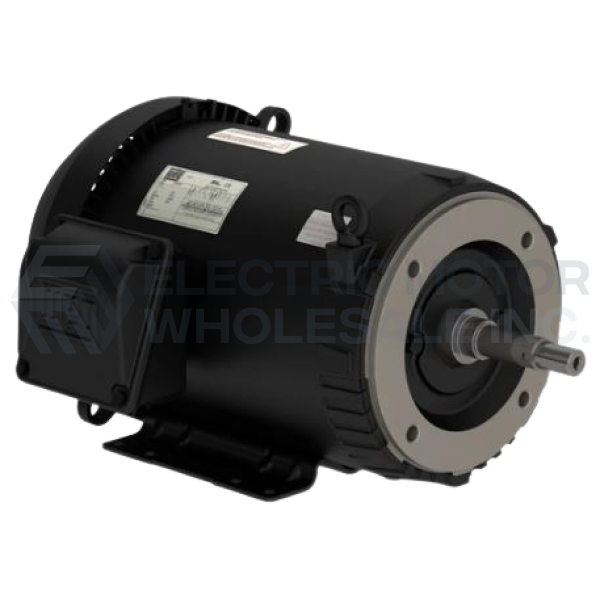

Picture is for reference only.
Part Number:
G140764.00Model/Spec Number:
C215T34FK10AManufacturer:
Leeson ObsoleteThis product has been discontinued with no direct replacement from the manufacturer. The functional equivalent should be reviewed for application compatibility.
Click below to view suggested functional replacement.
Shipping Details
Weight:
140 lbsDimensions:
14 x 26 x 14 inchesHS Code:
8501.52.4000Technical Details
Specifications
Brand: | Leeson |
Application: | Closed Coupled |
Output HP: | 15 |
Output KW: | 11-14 |
Output RPM: | 3450 |
Frame Size NEMA: | 215JM |
Mount NEMA: | C Face With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP43 |
Voltage: | 230//460//190/38 |
Documentation
Additional Information
| Volts | 230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 36 | F.L. Amps | 18 | F.L. Amps | 30/15 |
| S. F Amps | 40 | S. F Amps | 20 | S. F Amps | 33.5/16.7 |
| RPM | 3600 | Hertz | 60/50 | ||
| HP | 15 | Duty | CONTINUOUS | TYPE | TF |
| KW | 11.2 | Model Number | C215T34FK10A | ||
| Frame | 215JM | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 90.2 | Eff 75% | PF | 87 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 206 |
| CC Number | CC005A | CE | Yes | Bearing PE | 309 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 139 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | Mounting | RIGID | Rotation | REV |
