2HP LEESON 1200RPM 215T TEFC 115/208-230V 1PH MOTOR 140747.00

Catalog Number:  140747.00 - FREE Ground Shipping in USA
Model Number:  C215K11FB3A
Description:  2HP,1140RPM,215T,TEFC,115/208-230V,1PH,60HZ
Ship Weight:  118 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

140747.00 LEESON 2HP Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.


  • Durable rolled steel frame
  • Continuous Duty
  • Meets or exceeds NEMA service factors
  • 1 3/8" Keyed output shaft
  • Double-shielded ball bearings
  • Capacitor Start
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 22.4 F.L. Amps 11.6-11.2 F.L. Amps
S. F Amps 24.4 S. F Amps 12.2 S. F Amps
RPM 1200 Hertz 60
KW 1.49 Model Number C215K11FB3A
Frame 215T Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 77 Eff 75%   PF 75
UL Yes CSA Yes Bearing OPE 6206
CC Number   CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 118 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW

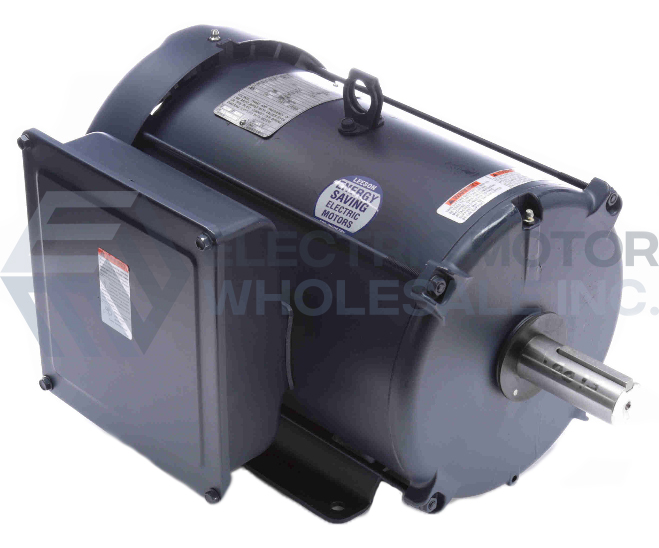

2HP LEESON 1200RPM 215T TEFC 115/208-230V 1PH MOTOR 140747.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 140747.00
Stock # 140747
Price: $1,438.00
Compare At: $3,326.00
