10HP LEESON 3465RPM 215JP DP 1PH MOTOR 140647.00

Catalog Number:  140647.00 - FREE Ground Shipping in USA
Model Number:  C215K34DK1A
Description:  10HP,3465RPM,215JP,DP,1PH,60HZ,JP PUMP
Ship Weight:  138 lbs.

LEESON JP Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JP mounting provisions. All motors have a rigid mounting base and NEMA JP pump shaft.

FEATURES:

  • Durable rolled steel frame
  • Capacitor Start
  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Non USA Manufactured, MX
  • Uses drip cover kit 175305.00
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 230 Volts   Volts
F.L. Amps 47 F.L. Amps   F.L. Amps
S. F Amps 57 S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 10 Duty CONTINUOUS TYPE CD
KW 7.5 Model Number C215K34DK1A
Frame 215JP Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 81.5 Eff 75%   PF 84
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 206
CC Number EXEMPT CE No Bearing PE 309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 138 LB Enclosure DP Lubrication STANDARD
Nameplate   Mounting RIGID Rotation SELECTIVE CCW

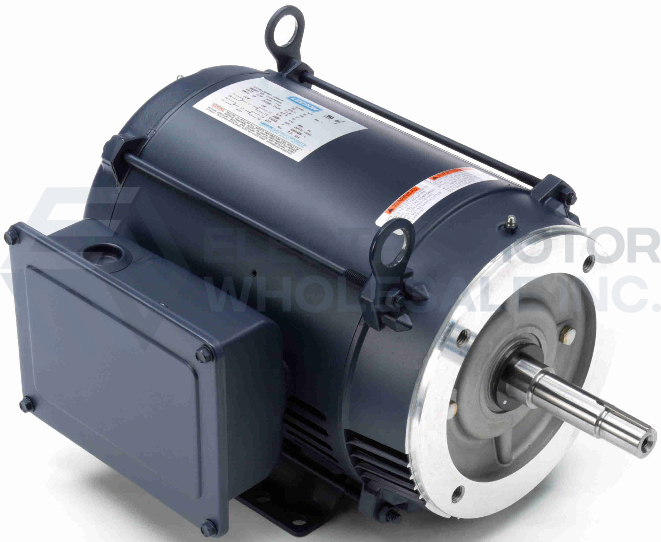

10HP LEESON 3465RPM 215JP DP 1PH MOTOR 140647.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 140647.00
Stock # 140647
Price: $933.00
Compare At: $2,743.00
