10HP LEESON 3465RPM 215JM DP 1PH MOTOR 140644.00

Catalog Number:  140644.00
Model Number:  C215K34DK2A
Description:  10HP,3465RPM,215JM,DP,1PH,60HZ,JM PUMP
Ship Weight:  135 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump shaft.

FEATURES:

  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • 210 frame rolled steel motors have Class F Insulation
  • Open drip-proof construction
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Capacitor start/capcitor run design for reduced amperage
  • Non USA Manufactured, MX
  • Uses drip cover kit 175305.00
Volts 230 Volts   Volts
F.L. Amps 47 F.L. Amps   F.L. Amps
S. F Amps 57 S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 10 Duty CONTINUOUS TYPE CD
KW 7.5 Model Number C215K34DK2A
Frame 215JM Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 81.5 Eff 75%   PF 84
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 206
CC Number EXEMPT CE No Bearing PE 309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 135 LB Enclosure DP Lubrication STANDARD
Nameplate   Mounting RIGID Rotation SELECTIVE CCW

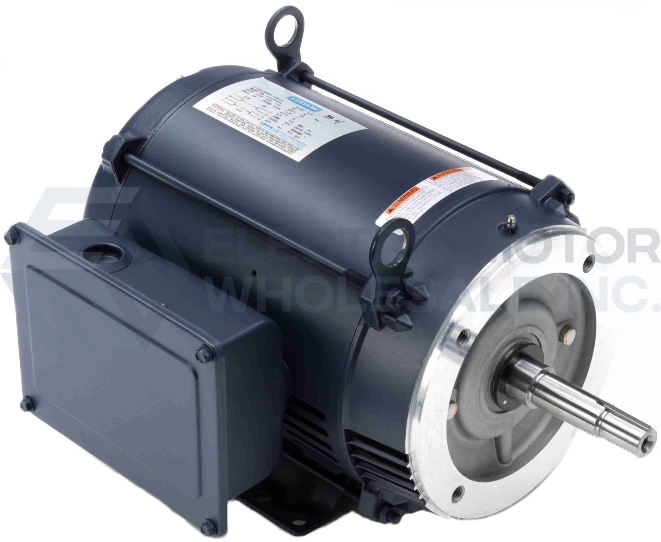

10HP LEESON 3465RPM 215JM DP 1PH MOTOR 140644.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 140644.00
Stock # 140644
Price: $958.00
Compare At: $2,817.00
