7.5HP LEESON 3470RPM 213JM DP 1PH MOTOR 140642.00

Catalog Number:  140642.00
Model Number:  C213C34DK3A
Description:  7.5HP,3470RPM,213JM,DP,1PH,60HZ,JM PUMP
Ship Weight:  109 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for continuous duty service on close-coupled pumps using NEMA JM & JP mounting provisions. All motors have a rigid mounting base and NEMA JM & JP pump shaft.

FEATURES:

  • 7/8" shaft output diameter
  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation
  • Open drip-proof construction
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Drip covers are available as accessory kits for 143-5 and 182-4JM & JP motors
  • Non USA Manufactured, MX
  • Uses drip cover kit 175305.00
  • Capacitor start/capacitor run design for reduced amperage
Volts 230 Volts   Volts
F.L. Amps 37 F.L. Amps   F.L. Amps
S. F Amps 43 S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 7 1/2 Duty CONTINUOUS TYPE CD
KW 5.6 Model Number C213K34DK2A
Frame 213JM Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 78.5 Eff 75%   PF 82.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 206
CC Number EXEMPT CE No Bearing PE 309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 109 LB Enclosure DP Lubrication STANDARD
Nameplate   Mounting RIGID Rotation SELECTIVE CCW

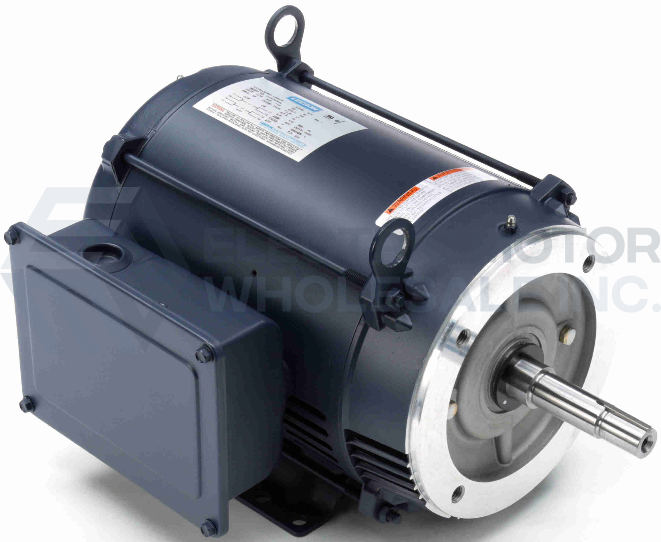

7.5HP LEESON 3470RPM 213JM DP 1PH MOTOR 140642.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 140642.00
Stock # 140642
Price: $466.00
Compare At: $2,362.00
