10HP LEESON 1760RPM 215TC TEFC 3PH BRAKE MOTOR 140637

LEESON Catalog Number:  140637.00
Description:  10HP,1760RPM,215TC,TEFC,3PH,60HZ,BRAKE
Ship Weight:  139 lbs.

This LEESON Motor Can ONLY Ship Ground!
For expedited needs please contact our sales team for freight options.

This Leeson Motor is a Build To Order product and factory lead times are approximately 3-6 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

LEESON Fail-safe positive, stop and hold brakemotors. Brakes are spring set. Load stopped automatically when power is turned off. LEESON brakemotors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor.

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 29-28 F.L. Amps 14 F.L. Amps 26/13
S. F Amps 31-30 S. F Amps 15 S. F Amps 28/14
RPM 1800 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TF
KW 7.50 Model # C215T17FC8B
Frame 215TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 76
UL Yes CSA Yes Bearing OPE 6206
CC Number NONE CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 139 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting C FACE Rotation REV

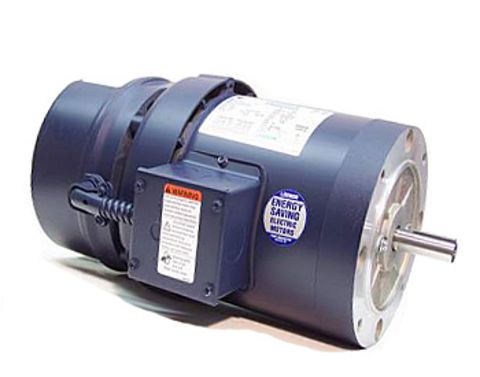

10HP LEESON 1760RPM 215TC TEFC 3PH BRAKE MOTOR 140637
Click Image to Enlarge
Manufacturer Part Number: 140637.00
Stock # 140637
