10HP LEESON 1760RPM 215JM TEFC 3PH MOTOR G140623.00

LEESON 140623.00 has been Superseded by G140623.00

Catalog Number:  G140623.00
Model Number:  C215T17FK18A
Description:  10HP,1760RPM,215JM,TEFC,3PH,60HZ,JM PUMP
Ship Weight:  145 lbs.

This LEESON Motor Can Only Ship Ground Truck Freight
For expedited needs please contact our sales team.

LEESON Three Phase Electric Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump shaft.

Mechanical Features:

  • Totally enclosed fan cooled construction, for maximum life in dirty or severe environments
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Drip covers are available as accessory kist for 143-5JM and 182-4JM motors
  • Some 182-4JM frame motors have enclosed endshields as standard with frame vents meeting the 12* drip-proof requirement
  • No drip cover is needed, or shown in the table, for these motors

Electrical Features:

  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation


Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 29-28 F.L. Amps 14 F.L. Amps 26/13
S. F Amps 31-30 S. F Amps 15 S. F Amps 28/14
RPM 1800 Hertz 60/50
KW 7.5 Model Number C215T17FK18 A
Frame 215JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 76
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number EXEMPT CE Yes Bearing PE 6209
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 145 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID C Rotation REV

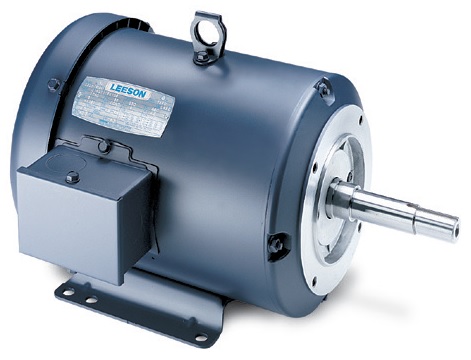

10HP LEESON 1760RPM 215JM TEFC 3PH MOTOR G140623.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G140623.00
Stock # G140623
