7.5HP LEESON 1760RPM 215JM TEFC 3PH PUMP MOTOR G140622.00

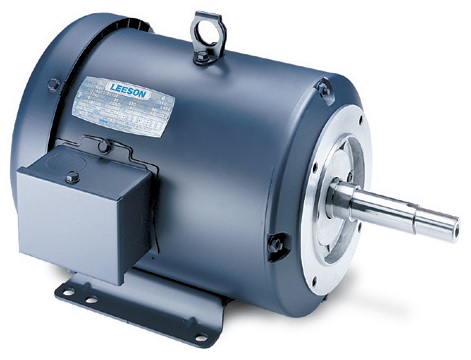

Picture is for reference only.

Part Number:

G140622.00

Model/Spec Number:

C213T17FK23A

Manufacturer:

Leeson Obsolete

G140622.00 LEESON 7.5HP Three Phase Electric Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

130 lbs

Dimensions:

16 x 24 x 16 inches

HS Code:

8501.52.4000

Technical Details

Specifications

Brand:	Leeson
Application:	Closed Coupled
Output HP:	7.5//5.0
Output KW:	5.5
Output RPM:	1760//1465
Frame Size NEMA:	213-5JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	89.5
Enclosure IEC:	IP43
Frequency (Hz):	60//50

Documentation

Motor Drawing REF-1100

Connection Diagram

Additional Information

Volts 208-230 Volts 460 Volts 190/380 F.L. Amps 24-22 F.L. Amps 11 F.L. Amps 18/9 S. F Amps 26-24 S. F Amps 12 S. F Amps 20/10 RPM 1800 Hertz 60/50 HP 7 1/2 Duty CONTINUOUS TYPE TF KW 5.6 Model Number C213T17FK23 A Frame 213JM Serv. Factor 1.15 Phase 3 Max Amb 40 Design B Code H Insul Class F Protection NOT Therm.Prot. Eff 100% 89.5 Eff 75% PF 72 UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206 CC Number EXEMPT CE Yes Bearing PE 6209 Load Type Inverter Type Speed Range NONE Motor Wt. 127 LB Enclosure TEFC Lubrication POLYREX EM Nameplate 081284 Mounting RIGID C Rotation REV
