5HP LEESON 1440RPM 213TZ IP54 1PH MOTOR 140475.00

Catalog Number:  140475.00
Model Number:  P213K14FB1E
Description:  5HP,1440RPM,213TZ,IP54,1PH,50HZ
Ship Weight:  166 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

IP54 Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

General Specifications: 50 Hz single phase designs produce full rated HP on 50Hz power supply. Designed for general purpose applications.

Electrical Features: High efficiency energy saving designs. Centrifugal switch specifically designed for 50 Hz service. Conduit box with leads. Torque at rated HP on 50 Hz power supply is 20% greater than the running torque of a 60 Hz motor. All 180 and 210 frame Rolled Steel motors have Class F Insulation.

Features include:

  • 1 1/8" shaft output diameter
  • Durable rolled steel frame
  • High-quality ball bearings
  • Capacitor Start
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
  • Non USA Manufactured, MX
Volts 220 Volts   Volts
F.L. Amps 24.5 F.L. Amps   F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1500 Hertz 50
HP 5 Duty CONTINUOUS TYPE KLE?KF
KW 3.70 Model Number P213K14FB1E
Frame 213TZ Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code H
Insul Class F Protection MANUAL Therm.Prot. LEH30KD
Eff 100% 82.5 Eff 75%   PF 83.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number EXEMPT CE No Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 166 LB Enclosure IP54 Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW

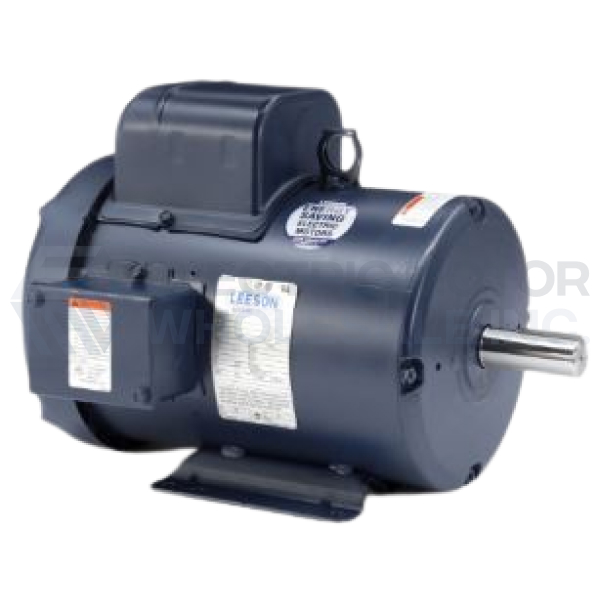

5HP LEESON 1440RPM 213TZ IP54 1PH MOTOR 140475.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 140475.00
Stock # 140475
Price: $1,218.00
Compare At: $3,074.00
Quantity:
