7.5/1.9HP LEESON 1740/860RPM 215T TEFC 460V 3PH MOTOR 140447

LEESON Catalog Number:  140447.00
Description:  7.5/1.9HP,1740/860RPM,215T,TEFC,460V,3PH,60HZ,TWO SPEED
Ship Weight:  158 lbs.

This LEESON Motor Can ONLY Ship Ground!
For expedited needs please contact our sales team for freight options.

APPLICATIONS: LEESON Two Speed One Winding Variable Torque Electric Motors are designed for use in applications in which multiple speeds are required.

Variable torque motors have horsepower ratings that vary as the square of the speed, while torque varies directly with the speed. These motors are typically used on applications such as fans, blowers and centrifugal pumps.

Constant horsepower motors develop the same horsepower at all operating speeds, and the torque varies inversely with the speed. These motors are often used on machine tools, such as drills, lathes, punch presses and milling machines.

Volts 460 Volts   Volts 460
F.L. Amps 9.7 F.L. Amps   F.L. Amps 3.3
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60/60
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.60 Model # C215T48FB46C
Frame 215T Serv. Factor 1.0 Phase 3
Max Amb 40 Design NO DESIGN CODE Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE 6206
CC Number NONE CE No Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 158 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation REV

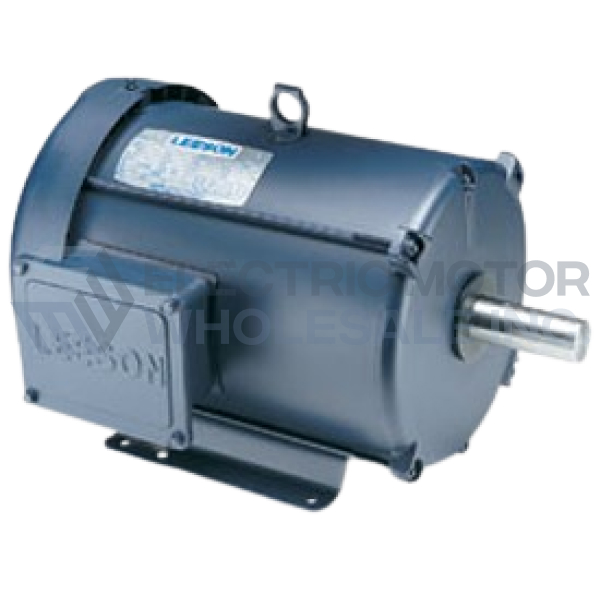

7.5/1.9HP LEESON 1740/860RPM 215T TEFC 460V 3PH MOTOR 140447
Click Image to Enlarge
Manufacturer Part Number: 140447.00
Stock # 140447
Price: $1,077.00
Compare At: $2,718.00
