10/2.5HP LEESON 1740/860RPM 215T TEFC 208-230V 3PH MOTOR 140444

Catalog Number:  140444.00
Description:  10/2.5HP,1740/860RPM,215T,TEFC,208-230V,3PH,60HZ,2-SPEED
Ship Weight:  169 lbs.

This LEESON Motor Can ONLY Ship Ground Freight.
For expedited needs please contact our sales team.

APPLICATIONS: LEESON Two Speed One Winding Variable Torque Electric Motors are designed for use in applications in which multiple speeds are required.

Variable torque motors have horsepower ratings that vary as the square of the speed, while torque varies directly with the speed. These motors are typically used on applications such as fans, blowers and centrifugal pumps.

Constant horsepower motors develop the same horsepower at all operating speeds, and the torque varies inversely with the speed. These motors are often used on machine tools, such as drills, lathes, punch presses and milling machines.

Volts 208-230 Volts   Volts 208-230
F.L. Amps 25.4 F.L. Amps   F.L. Amps 8.4
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60/60
KW 7.46 Model # C215T48FB47C
Frame 215T Serv. Factor 1.0 Phase 3
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE 6206
CC Number   CE No Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 169 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation REV

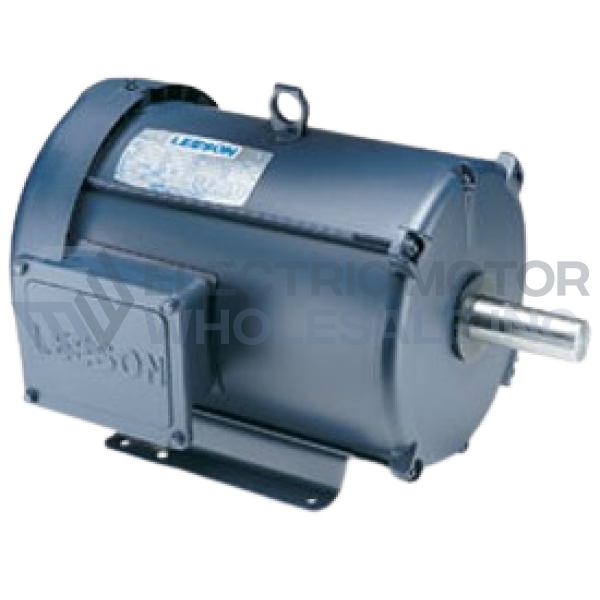

10/2.5HP LEESON 1740/860RPM 215T TEFC 208-230V 3PH MOTOR 140444
Click Image to Enlarge
Manufacturer Part Number: 140444.00
Stock # 140444
Price: $1,130.00
Compare At: $2,550.00
