10HP LEESON 1740RPM 215TZ DP 1PH MOTOR 140311.00

Catalog Number:  140311.00 - FREE Ground Shipping in USA
Model Number:  C215K17DB4 G
Description:  10HP,1740RPM,215TZ,DP,1PH,60HZ
Ship Weight:  159 lbs.

DP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Durable rolled steel frame
  • 1-3/8" Keyed output shaft
  • 4-3/8" Shaft length 1" longer than standard
  • Capacitor start/capacitor run design for reduced amperage
  • High-quality ball bearings
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
Volts 230 Volts   Volts
F.L. Amps 43 F.L. Amps   F.L. Amps
S. F Amps 54 S. F Amps   S. F Amps
RPM 1800 Hertz 60
KW 7.46 Model # C215K17DB4G
Frame 215TZ Serv. Factor 1.25 Phase 1
Max Amb 40 Design L Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 81.5 Eff 75%   PF 92.5
UL Yes CSA Yes Bearing OPE 6206
CC Number   CE No Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 159 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW

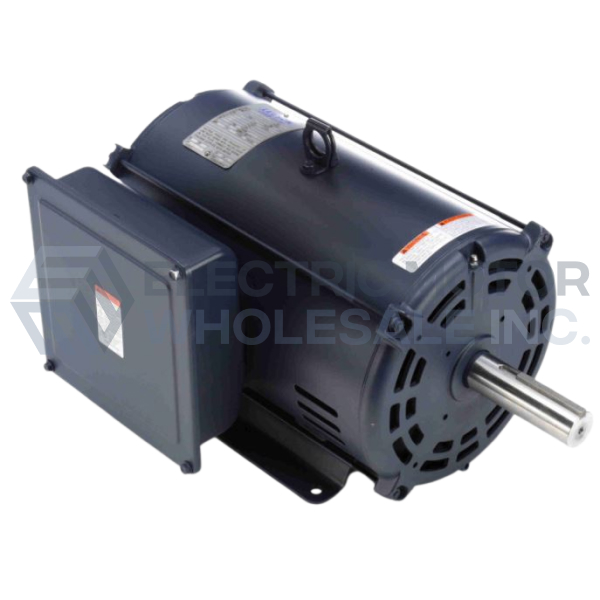

10HP LEESON 1740RPM 215TZ DP 1PH MOTOR 140311.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 140311.00
Stock # 140311
