7.5HP LEESON 1740RPM 215T 1PH EX HI-TORQ MOTOR 140130.00

Catalog Number:  140130.00
Model Number:  P215K17FB2L
Description:  7.5HP,1740RPM,215T,TEFC,EX HI-TORQUE,1PH,60HZ
Ship Weight:  152 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed specifically for severe "farm duty" environments and applications, but work excellently in standard environments such as Air compressors, pumps and other single phase machinery.

Extra Hi-Torque rated 5, 7.5 and 10 HP Motors delivers starting torque as high as 300-400% of motor's full load torque.

Mechanical Features:

  • Steel frame
  • 1 3/8" shaft output diameter
  • Gasketed capacitor housing and conduit boxes provide protection in all environments.
  • Double sealed ball bearings pre-lubricated with Exxon POLYREX EM grease having operating temperature range of -20*F to +350*F and special formulation to provide extra bearing protection.
  • Rubber boot over manual protector reset button provides weather protection
  • Non USA Manufactured, MX

Electrical Features:

  • Low temperature manual overload protector protects against extreme overload.
  • Class "F" copper windings and varnish.
  • Capacitor start/Capacitor run provides high starting torque with normal starting current.

NOTE: At this time LEESON does not have a field serviceable C-face kit available for this motor

Volts 230 Volts   Volts
F.L. Amps 33.6 F.L. Amps   F.L. Amps
S. F Amps 37 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 7.5 Duty CONTINUOUS TYPE KF
KW 5.60 Model # P215K17FB2L
Frame 215T Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection MANUAL Therm.Prot. LED965
Eff 100% 82.5 Eff 75%   PF 88
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number   CE No Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 152 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW

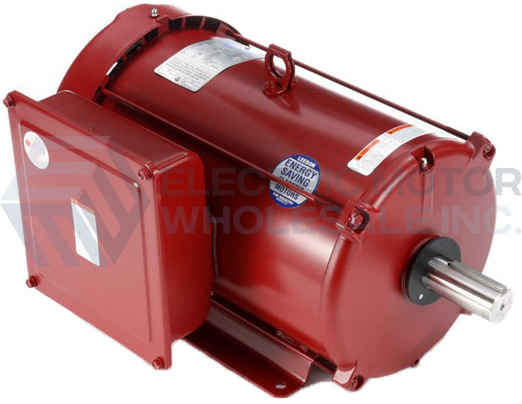

7.5HP LEESON 1740RPM 215T 1PH EX HI-TORQ MOTOR 140130.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 140130.00
Stock # 140130
Price: $891.00
Compare At: $2,620.00
Quantity:
