7.5HP LEESON 1740RPM 215T TEFC 1PH MOTOR 140120.00

Catalog Number:  140120.00 - FREE Ground Shipping in USA
Model Number:  N215K17FB1 H
Description:  7.5HP,1740RPM,215T,TEFC,1PH,60HZ
Ship Weight:  172 lbs.

LEESON Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Durable rolled steel frame
  • 1 3/8" Keyed output shaft
  • Double-shielded ball bearings
  • Capacitor Start/Capacitor Run
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 230 Volts   Volts
F.L. Amps 33.6 F.L. Amps   F.L. Amps
S. F Amps 37 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 7.5 Duty CONTINUOUS TYPE KF
KW 5.60 Model Number N215K17FB1H
Frame 215T Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75%   PF 88
UL Yes CSA Yes Bearing OPE 6206
CC Number   CE No Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 172 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW

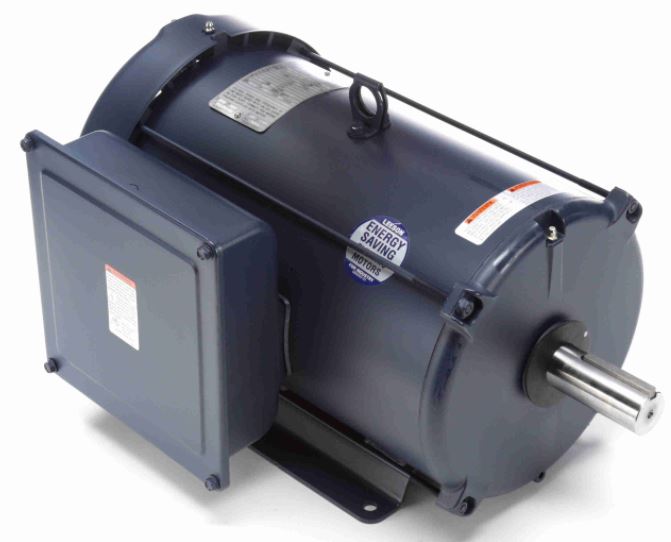

7.5HP LEESON 1740RPM 215T TEFC 1PH MOTOR 140120.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 140120.00
Stock # 140120
Price: $898.00
Compare At: $2,267.00
Quantity:
