3HP LEESON 1745RPM 182T 3PH ECO-AG MOTOR 132328
| Catalog Number: | 132328.00 |
| Model Number: | C182T17FB54A |
| Description: | 3HP,1745RPM,182T,TEFC,3PH,60/50HZ,PREMIUM |
| Ship Weight: | 75 lbs. |
This LEESON Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team for freight options.
APPLICATIONS: For use where exposure to water, dust and dirt exists. Ideally suited for use Farm / Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders, and other demanding farm duty equipment.
FEATURES:
- Premium efficient
- Steel frame construction
- Double sealed ball bearings
- Shaft flingers
- Normally closed thermostat protected
- Weep holes provide condensation drains
- Footnotes: S,MX
| 208-230 | Volts | 460 | Volts | ||
| F.L. Amps | 8.4-7.8 | F.L. Amps | 3.9 | F.L. Amps | |
| S. F Amps | 9.6-8.8 | S. F Amps | 4.4 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 3 | Duty | CONTINUOUS | TYPE | TF |
| KW | 2.24 | Model # | C182T17FB54AA | ||
| Frame | 182T | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | K |
| Insul Class | F | Protection | AUTOMATIC | Therm.Prot. | |
| Eff 100% | 89.5 | Eff 75% | PF | 80.5 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6205 |
| CC Number | CC005A | CE | Yes | Bearing PE | 6206 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 75.2 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | 081400 | Mounting | RIGID | Rotation | REV |
| Assembly | Shaft Dia. | 1.125 IN | Ext. Diag. | 005010.20 |

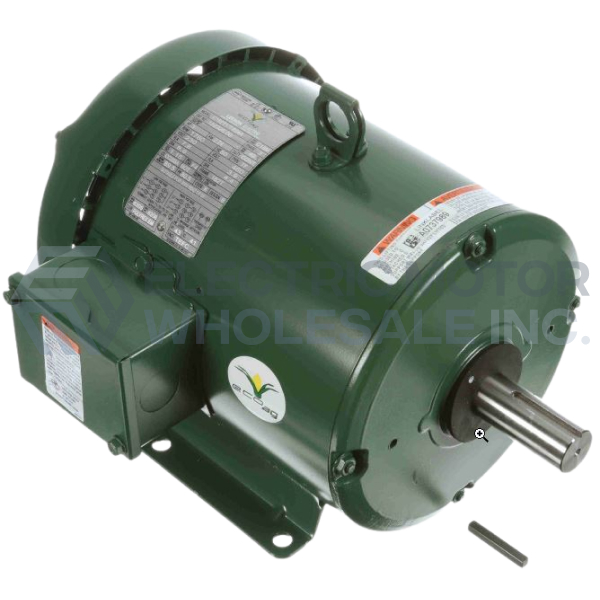

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 132328.00
Stock # 132328
