7.5HP LEESON 3600RPM 184T ODP 208-230V 1PH MOTOR 132044.00

Catalog Number:  132044.00 - FREE Ground Shipping in USA
Model Number:  C184K34DB8A
Description:  7.5HP,3450RPM,184T,DP,208-230V,1PH,60HZ,COMPRESSOR DUTY
Ship Weight:  110 lbs.

LEESON Compressor Duty ODP Motors: designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction.

Features Include:

  • Durable rolled steel frame
  • 1 1/8" Keyed output shaft
  • Dual rotation
  • High starting and breakdown torque
  • Compressor Duty
  • Automatic Overload Protection
  • Capacitor start/capacitor run design for reduced amperage
  • High-quality double shielded ball bearings
  • UL Recognized Component Listing and CSA approval
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
  • Non USA Manufactured, MX
Volts 208-230 Volts   Volts
F.L. Amps 34-31 F.L. Amps   F.L. Amps
S. F Amps 35.4 S. F Amps   S. F Amps
RPM 3600 Hertz 60
KW 5.60 Model # C184K34DB8A
Frame 184T Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class F Protection AUTOMATIC Therm.Prot. 9700K66
Eff 100% 82.5 Eff 75%   PF 93.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number EXEMPT CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 110 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW

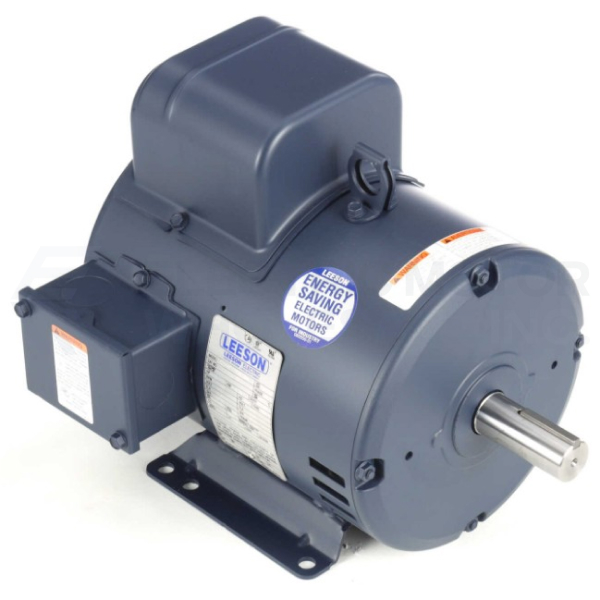

7.5HP LEESON 3600RPM 184T ODP 208-230V 1PH MOTOR 132044.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 132044.00
Stock # 132044
Price: $622.00
Compare At: $1,266.00
