7.5HP LEESON 3600RPM 184TC ODP 208-230V 1PH MOTOR 132043.00

Catalog Number:  132043.00 - FREE Ground Shipping in USA
Model Number:  C184K34DK8A
Description:  7.5HP,3450RPM,184TC,DP,208-230V,1PH,60HZ
Ship Weight:  112 lbs.

LEESON Single Phase General Purpose Motor for use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.


  • Durable rolled steel construction
  • Continuous duty
  • Thermally protected ratings
  • 1 1/8" Keyed output shaft
  • Compressor Duty
  • Double-shielded ball bearings
  • Capacitor Start/Capacitor Run
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 208-230 Volts   Volts
F.L. Amps 34-31 F.L. Amps   F.L. Amps
S. F Amps 35.4 S. F Amps   S. F Amps
RPM 3600 Hertz 60
KW 5.60 Model # C184K34DK8A
Frame 184TC Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class F Protection AUTOMATIC Therm.Prot. 9700K66
Eff 100% 82.5 Eff 75%   PF 93.5
UL Yes CSA Yes Bearing OPE 6205
CC Number EXEMPT CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 112 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID C Rotation SELECTIVE CCW

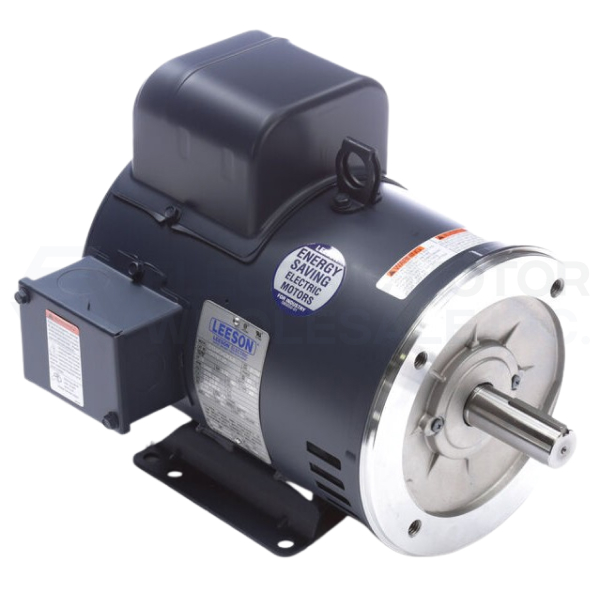

7.5HP LEESON 3600RPM 184TC ODP 208-230V 1PH MOTOR 132043.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 132043.00
Stock # 132043
Price: $749.00
Compare At: $1,586.00
