7.5HP LEESON 3505RPM 213JM TEFC 3PH PUMP MOTOR G132027.00

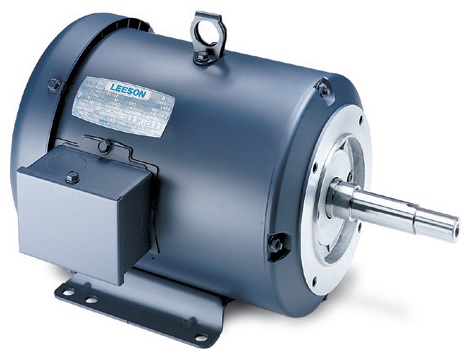

Picture is for reference only.

Part Number:

G132027.00

Model/Spec Number:

C184T34FK41A

Manufacturer:

Leeson Obsolete

132027.00 LEESON 7.5HP Three Phase Electric Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

110 lbs

Dimensions:

14 x 26 x 14 inches

HS Code:

8501.52.4000

Technical Details

Specifications

Brand:	Leeson
Application:	Closed Coupled
Output HP:	7.5
Output KW:	5.5
Output RPM:	3505
Frame Size NEMA:	213JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Frequency (Hz):	60//50

Documentation

Motor Drawing REF DASH-1150

Connection Diagram

Additional Information

Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	17.6-16.8	F.L. Amps	8.4	F.L. Amps	14/7
S. F Amps		S. F Amps		S. F Amps
RPM	3600	Hertz	60/50
HP	7 1/2	Duty	CONTINUOUS	TYPE	TF
KW	5.60	Model Number	C184T34FK41A A
Frame	S213JM	Serv. Factor	1.0	Phase	3
Max Amb	40	Design	B	Code	J
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	88.5	Eff 75%		PF	94.5
UL	Yes	CSA	Yes	Bearing OPE	6205
CC Number	EXEMPT	CE	Yes	Bearing PE	6207
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	108 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	081284	Mounting	RIGID C	Rotation	REV
