2HP LEESON 1170RPM 184T TEFC 3PH WATTSAVER MOTOR 131981.00

Catalog Number:  131981.00
Model Number:  C184T11FB20B
Description:  2HP,1170RPM,184T,TEFC,3PH,60/50HZ,WATTSAVER
Ship Weight:  92 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON WATTSAVER line of premium efficiency motors are now inverter capable. LEESON's unique IRIS voltage-spike-resistant insulation system is standard at no extra cost. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

FEATURES:

  • Steel frame
  • 1 1/8" shaft output diameter
  • 1.15 Service Factor
  •  Class F insulation
  • Inverter rated
  • Continuous duty
  • Dynamically balanced rotors
  • UL recognized and CSA certified
  • NEMA Premium efficiency with 3 year warranty
  • Non-USA Manufactured, MX
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 7.35-6.4 F.L. Amps 3.2 F.L. Amps 7/3.5
S. F Amps 8.05-7 S. F Amps 3.5 S. F Amps 7.4/3.7
RPM 1200 Hertz 60/50
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49 Model # C184T11FB20B
Frame 184T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot. 9700K46
Eff 100% 88.7 Eff 75%   PF 66.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number CC005A CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 92 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate   Mounting RIGID Rotation REV
Assembly 180-001 Shaft Dia. 1 1/8 IN Ext. Diag. 005010.20

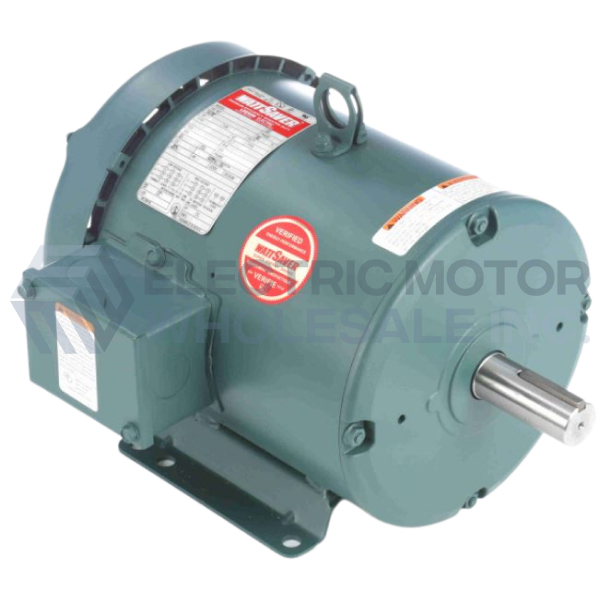

2HP LEESON 1170RPM 184T TEFC 3PH WATTSAVER MOTOR 131981.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 131981.00
Stock # 131981
Price: $564.00
Compare At: $1,503.00
