2HP LEESON 1170RPM 184T DP 3PH WATTSAVER MOTOR 131972.00

Catalog Number:  131972.00 - FREE Ground Shipping in USA
Model Number:  C184T11DB9 B
Description:  2HP,1170RPM,184T,DP,3PH,60/50HZ,WATTSAVER
Ship Weight:  81 lbs.

LEESON WATTSAVER motor carries a three-year warranty in general purpose and inverter fed applications These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

FEATURES:

  • 1 1/8" Keyed output shaft
  • Durable steel frame
  • Inverter-rated
  • Rated for 50 Hz operation
  • Class F insulation systems
  • Shielded ball bearings for direct coupled applications
  • UL recognized and CSA certified
  • NEMA Premium efficient motor with 3 year warranty
  • Non-USA Manufactured, MX
Volts 230   Volts 460   Volts
FL Amps 6.8   FL Amps 3.4   FL Amps
SF Amps 7.4   SF Amps 3.7   SF Amps
RPM 1200   Hertz 60
HP 2   Duty CONTINUOUS   Type TD
KW 1.49   SF 1.15   Phase 3
Frame 184T   Design B   KVA Code K
Ambient 40   Protection AUTOMATIC   Therm.Prot. 9700K46
Insulation Class F   Eff(75%)     PF 62
Eff(100%) 87.5   CSA Y   Bearing OPE 6205
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6206
CC Number 005A   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 81 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 081298   Mounting RIGID   Rotation REV
Shaft Diam. 1 1/8 IN   Cust Part No.     Packaging B
      Winding T8637   Carton Label Leeson Wattsaver
      Group 3   Iris
Paint GREEN - LEESON WATTSAVER   Hazardous Location NONE   Test Card 01

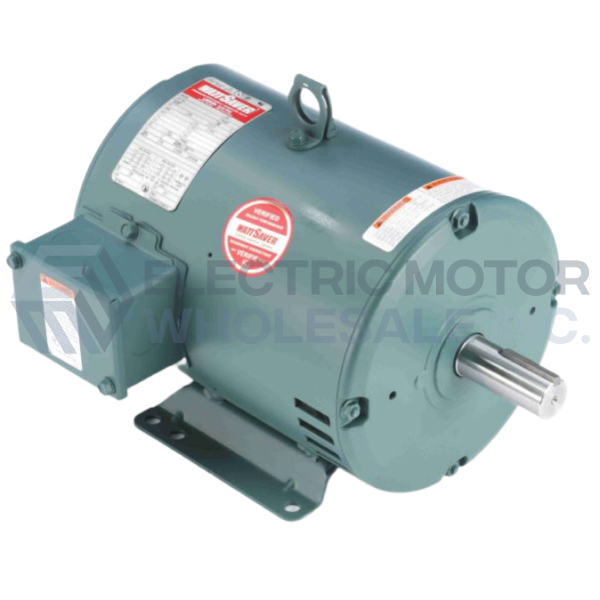

2HP LEESON 1170RPM 184T DP 3PH WATTSAVER MOTOR 131972.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 131972.00
Stock # 131972
Price: $404.00
Compare At: $1,111.00
