3HP LEESON 1750RPM 184T DP 1PH MOTOR 131851.00

Catalog Number:  131851.00 - FREE Ground Shipping in USA
Model Number:  C184K17DB40B
Description:  3HP,1750RPM,184T,DP,1PH,60HZ
Ship Weight:  75 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Durable rolled steel frame
  • 1 1/8" Keyed output shaft
  • Pressure Washer Duty
  • Capacitor Start and Run
  • Pressure washer duty
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
  • Non USA Manufactured, MX
Volts 208-230 Volts   Volts
F.L. Amps 15.4-13.7 F.L. Amps   F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
KW 2.238 Model # C184K17DB40B
Frame 184T Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class B Protection MANUAL Therm.Prot.
Eff 100% 82.5 Eff 75%   PF 85.4
UL No CSA Yes Bearing OPE 205
CC Number   CE   Bearing PE 206
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 75 LB Enclosure DP Lubrication STANDARD
Nameplate   Mounting RIGID Rotation SELECTIVE CCW

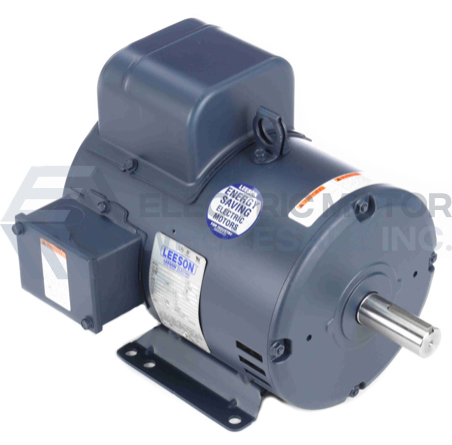

3HP LEESON 1750RPM 184T DP 1PH MOTOR 131851.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 131851.00
Stock # 131851
Price: $788.00
Compare At: $1,293.00
