5HP LEESON 3500RPM 184JM ODP 1PH PUMP MOTOR 131641.00

5HP LEESON 3500RPM 184JM ODP 1PH PUMP MOTOR 131641.00

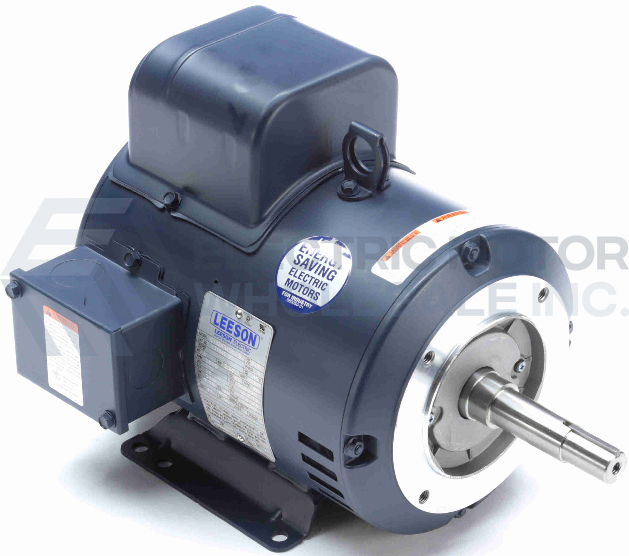

DP 182JM FRAME JM PUMP.jpg
Picture is for reference only.

Part Number:

131641.00

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

C184K34DK3B
131641.00 LEESON 5HP JM Pump Motors are designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump shaft.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

100 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.40.6040

UPC:

691720018606

Technical Details

Application:

Close-Coupled Pump

Output HP:

5

Output KW:

3.7

Output RPM:

3500

Frame NEMA:

184JM

Mount NEMA:

C-Face With Base

Enclosure NEMA:

ODP

Enclosure IEC:

IP22

Voltage:

208-230

Frequency (Hz):

60

Product Information Packet

LEESON JM Pump Motors are designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump shaft.

FEATURES:

  • Durable rolled steel frame
  • Capacitor Start/Capacitor Run
  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Non USA Manufactured, MX
  • Uses drip cover kit 175614.00
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
