5HP LEESON 1740RPM 184JM DP 1PH MOTOR 131605.00

Catalog Number:  131605.00
Model Number:  C184K17DK14A
Description:  5HP,1740RPM,184JM,DP,1PH,60HZ,JM PUMP
Ship Weight:  87 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions and a rigid mounting base.

FEATURES:

  • 7/8" shaft output diameter
  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation
  • Open drip-proof construction
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Drip covers are available as accessory kits for 143-5 and 182-4JM & JP motors
  • Non USA Manufactured, MX
  • Capacitor start/capacitor run design for reduced amperage
  • Uses drip cover kit 175933.00
Volts 208-230 Volts   Volts
F.L. Amps 23-21 F.L. Amps   F.L. Amps
S. F Amps 27-24 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 5 Duty CONTINUOUS TYPE KD
KW 3.73 Model Number C184K17DK14 A
Frame 184JM Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 83 Eff 75%   PF 94
UL Yes CSA Yes Bearing OPE 6205
CC Number   CE No Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 87 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID C Rotation SELECTIVE CCW

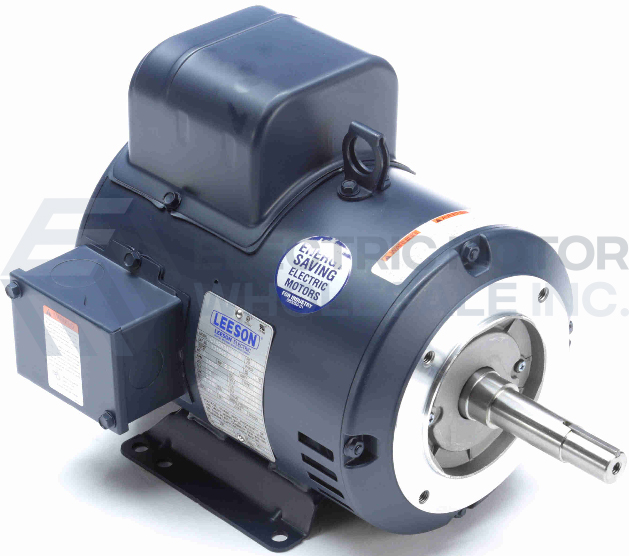

5HP LEESON 1740RPM 184JM DP 1PH MOTOR 131605.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 131605.00
Stock # 131605
Price: $688.00
Compare At: $2,021.00
