2HP LEESON 1440RPM 182T IP54 1PH MOTOR 131600.00

Catalog Number:  131600.00
Model Number:  P182C14FB5C
Description:  2HP,1440RPM,182T,IP54,1PH,50HZ
Ship Weight:  74 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

IP54 Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

General Specifications: 50 Hz single phase designs produce full rated HP on 50Hz power supply. Designed for general purpose applications.

Electrical Features: High efficiency energy saving designs. Centrifugal switch specifically designed for 50 Hz service. Conduit box with leads. Torque at rated HP on 50 Hz power supply is 20% greater than the running torque of a 60 Hz motor. All 180 and 210 frame Rolled Steel motors have Class F Insulation.

Features include

  • 1 1/8" shaft output diameter
  • Durable rolled steel frame
  • High-quality ball bearings
  • Capacitor Start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first
  • Non USA Manufactured, MX
Volts 220 Volts   Volts
F.L. Amps 12 F.L. Amps   F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1500 Hertz 50
HP 2 Duty CONTINUOUS TYPE CLE
KW 1.50 Model Number P182C14FB5C
Frame 182T Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection MANUAL Therm.Prot. BRD2971
Eff 100%   Eff 75%   PF
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number EXEMPT CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 74 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081305 Mounting RIGID Rotation SELECTIVE CCW
2HP LEESON 1440RPM 182T IP54 1PH MOTOR 131600.00

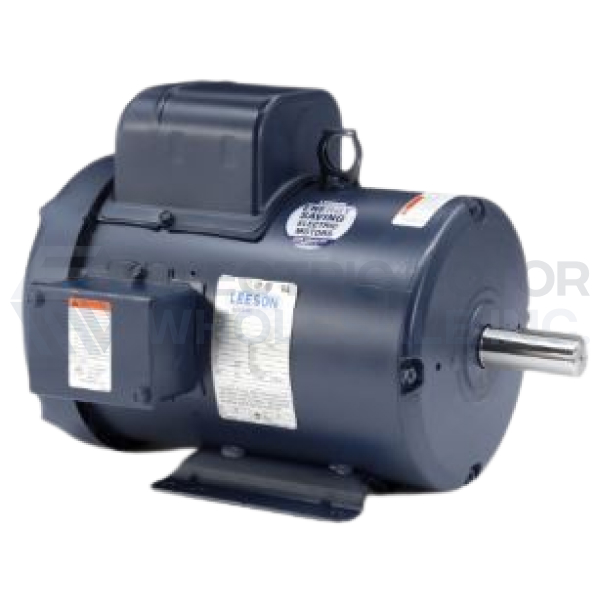

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 131600.00
Stock # 131600
Price: $661.00
Compare At: $1,667.00
