10HP LEESON 3510RPM 213JM TEFC 3PH PUMP MOTOR G141122.00

10HP LEESON 3510RPM 213JM TEFC 3PH PUMP MOTOR G141122.00

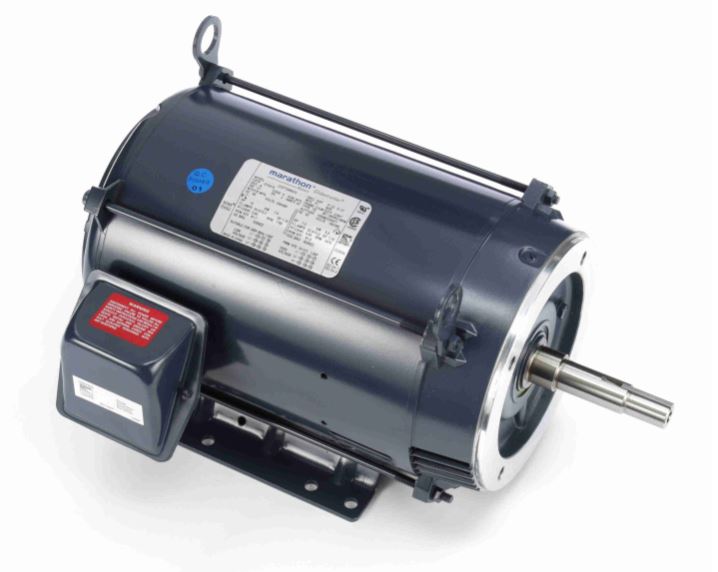

Picture is for reference only.

Part Number:

G141122.00

Model/Spec Number:

C213T34FK2A

Manufacturer:

Leeson Obsolete
G141122.00 LEESON 10HP Three Phase Electric Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

150 lbs

Dimensions:

16 x 24 x 16 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

10

Output KW:

7.5-10

Output RPM:

3510

Frame Size NEMA:

213JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Motor Drawing REF DASH-1115

Connection Diagram

Volts 208-230 Volts 460 Volts
F.L. Amps 27-24 F.L. Amps 12 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 10 Duty CONTINUOUS TYPE TF
KW 7.5 Model Number C213T34FK2 A
Frame 213JM Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 87
UL Yes CSA Yes Bearing OPE 206
CC Number CC005A CE Yes Bearing PE 309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 142 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate   Mounting RIGID C Rotation REV
