7.5HP LEESON 3510RPM 184JM TEFC 3PH MOTOR G131582.00

Catalog Number:  G131582.00
Model Number:  C184T34FK40A
Description:  7.5HP,3510RPM,184JM,TEFC,3PH,60HZ,JM PUMP
Ship Weight:  108 lbs.

This LEESON Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON Three Phase Electric Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump Shaft.

Mechanical Features:

  • Totally enclosed fan cooled construction, for maximum life in dirty or severe environments
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Drip covers are available as accessory kist for 143-5JM and 182-4JM motors
  • Some 182-4JM frame motors have enclosed endshields as standard with frame vents meeting the 12* drip-proof requirement
  • No drip cover is needed, or shown in the table, for these motors

Electrical Features:

  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation

LEESON 131582.00 has been superseded by G131582.00

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 17.6-16.8 F.L. Amps 8.4 F.L. Amps 14/7
S. F Amps   S. F Amps   S. F Amps
RPM 3600 Hertz 60/50
KW 5.60 Model Number C184T34FK40A A
Frame 184JM Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 88.5 Eff 75%   PF 94.5
UL Yes CSA Yes Bearing OPE 6205
CC Number EXEMPT CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 108 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID C Rotation REV

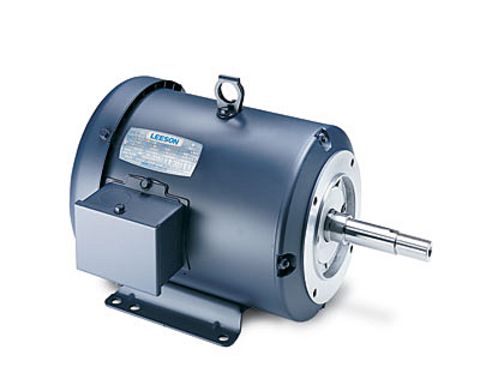

7.5HP LEESON 3510RPM 184JM TEFC 3PH MOTOR G131582.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G131582.00
Stock # G131582
