7.5HP LEESON 3505RPM 184JM DP 3PH MOTOR G131576

LEESON G131576.00 has been superseded by 199765.00

Catalog Number:  G131576.00
Description:  7.5HP,3505RPM,184JM,DP,3PH,60HZ,JM PUMP
Ship Weight:  88 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 19-17.6 F.L. Amps 8.8 F.L. Amps 14/7
S. F Amps 20.8 S. F Amps 10.4 S. F Amps 15.6/7.8
RPM 3600 Hertz 60/50
KW 5.60 Model Number C184T34DK18A A
Frame 184JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 87.5 Eff 75%   PF 91
UL Yes CSA Yes Bearing OPE 6205
CC Number EXEMPT CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 88 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID Rotation REV

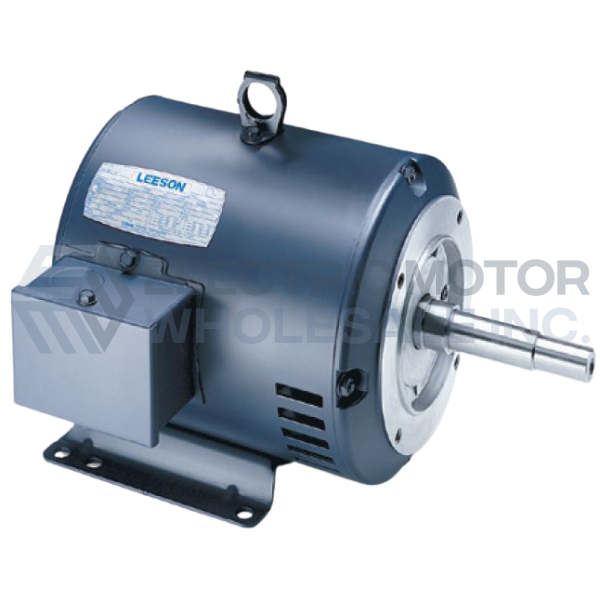

7.5HP LEESON 3505RPM 184JM DP 3PH MOTOR G131576
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G131576.00
Stock # G131576
