5HP LEESON 1440RPM 184T IP22 1PH MOTOR 131555.00

Catalog Number:  131555.00 - FREE Ground Shipping in USA
Model Number:  C184K14DB9A
Description:  5HP,1440RPM,184T,IP22,1PH,50HZ
Ship Weight:  95 lbs.

LEESON Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Durable rolled steel frame
  • 1-1/8" Keyed output shaft
  • High torque exceeds NEMA performance standards
  • Capacitor start/Capacitor run for reduced amperage
  • Centrifugal switch designed for 50Hz service
  • Shielded ball bearings
  • UL Recognized and CSA Certified
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
  • Non-USA Manufactured, MX.
Volts 220 Volts   Volts
F.L. Amps 23.2 F.L. Amps   F.L. Amps
S. F Amps 26.8 S. F Amps   S. F Amps
RPM 1500 Hertz 50
HP 5 Duty CONTINUOUS TYPE KD
KW 3.70 Model Number C184K14DB9A
Frame 184T Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 80 Eff 75%   PF 90
UL Yes CSA Yes Bearing OPE 6205
CC Number   CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 98 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW

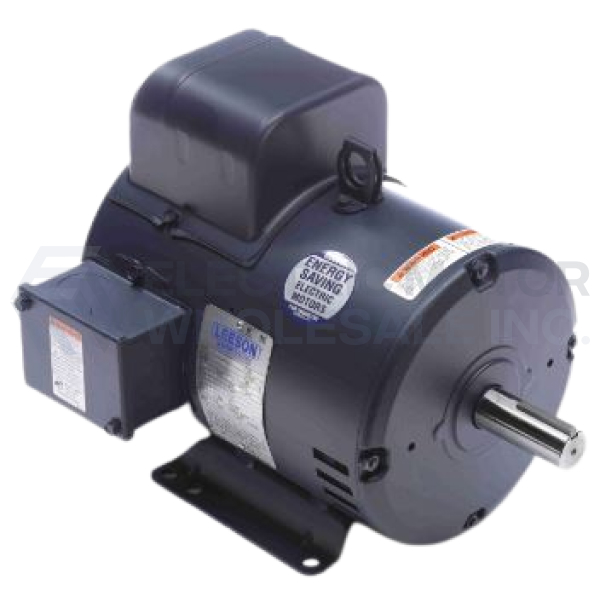

5HP LEESON 1440RPM 184T IP22 1PH MOTOR 131555.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 131555.00
Stock # 131555
Price: $1,322.00
Compare At: $3,035.00
