3HP LEESON 1440RPM 184T IP22 1PH MOTOR 131554.00

Catalog Number:  131554.00
Model Number:  C184C14DB2A
Description:  3HP,1440RPM,184T,IP22,1PH,50HZ
Ship Weight:  83 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

DP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

General Specifications: 50 Hz single phase designs produce full rated HP on 50Hz power supply. Designed for general purpose applications.

Electrical Features: High efficiency energy saving designs. Centrifugal switch specifically designed for 50 Hz service. Conduit box with leads. Torque at rated HP on 50 Hz power supply is 20% greater than the running torque of a 60 Hz motor. All 180 and 210 frame Rolled Steel motors have Class F Insulation.

Features Include:

  • 1 1/8" shaft output diameter
  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
  • Non USA Manufactured, MX
Volts 220 Volts   Volts
F.L. Amps 16.8 F.L. Amps   F.L. Amps
S. F Amps 18.5 S. F Amps   S. F Amps
RPM 1500 Hertz 50
HP 3 Duty CONTINUOUS TYPE CD
KW 2.20 Model Number C184C14DB2A
Frame 184T Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 76 Eff 75%   PF 79
UL Yes CSA Yes Bearing OPE 6205
CC Number   CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 83 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW

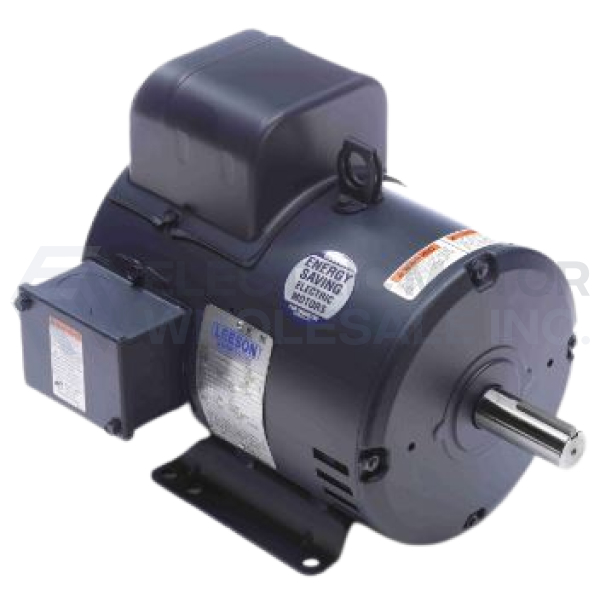

3HP LEESON 1440RPM 184T IP22 1PH MOTOR 131554.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 131554.00
Stock # 131554
Price: $588.00
Compare At: $1,484.00
