2HP LEESON 1440RPM 182T IP22 1PH MOTOR 131553.00

Catalog Number:  131553.00 Made in USA
Model Number:  C182C14DB3A
Description:  2HP,1440RPM,182T,IP22,1PH,50HZ
Ship Weight:  73 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

DP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

General Specifications: 50 Hz single phase designs produce full rated HP on 50Hz power supply. Designed for general purpose applications.

Electrical Features: High efficiency energy saving designs. Centrifugal switch specifically designed for 50 Hz service. Conduit box with leads. Torque at rated HP on 50 Hz power supply is 20% greater than the running torque of a 60 Hz motor. All 180 and 210 frame Rolled Steel motors have Class F Insulation.

Features Include:

  • Made in USA
  • 1 1/8" shaft output diameter
  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 220 Volts   Volts
F.L. Amps 11.8 F.L. Amps   F.L. Amps
S. F Amps 13 S. F Amps   S. F Amps
RPM 1500 Hertz 50
HP 2 Duty CONTINUOUS TYPE CD
KW 1.50 Model Number C182C14DB3A
Frame 182T Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE 6205
CC Number   CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 73 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW

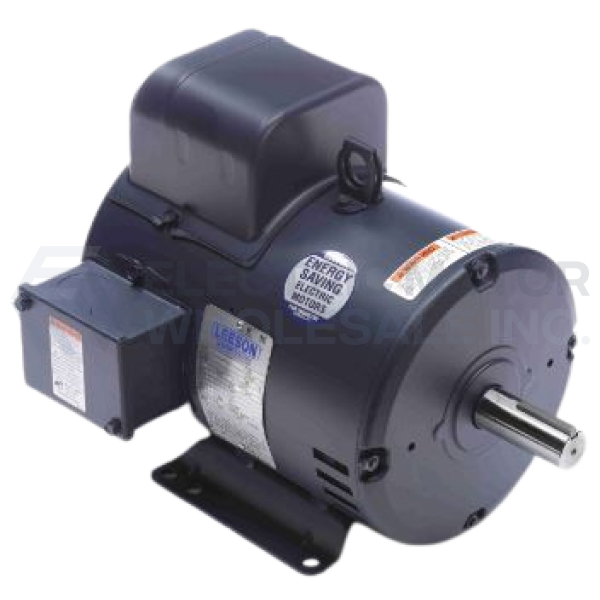

2HP LEESON 1440RPM 182T IP22 1PH MOTOR 131553.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 131553.00
Stock # 131553
