2HP LEESON 1740RPM 182TC TEFC 1PH MOTOR 131516.00

Catalog Number:  131516.00
Model Number:  C182C17FC3C
Description:  2HP,1740RPM,182TC,TEFC,1PH,60HZ
Ship Weight:  67 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Durable rolled steel frame
  • 1 1/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 24.8 F.L. Amps 13-12.4 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE CF
KW 1.49 Model Number C182C17FC3 C
Frame 182TC Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 72 Eff 75%   PF 75
UL Yes CSA Yes Bearing OPE 6205
CC Number EXEMPT CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 67 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081285 Mounting C FACE Rotation SELECTIVE CCW

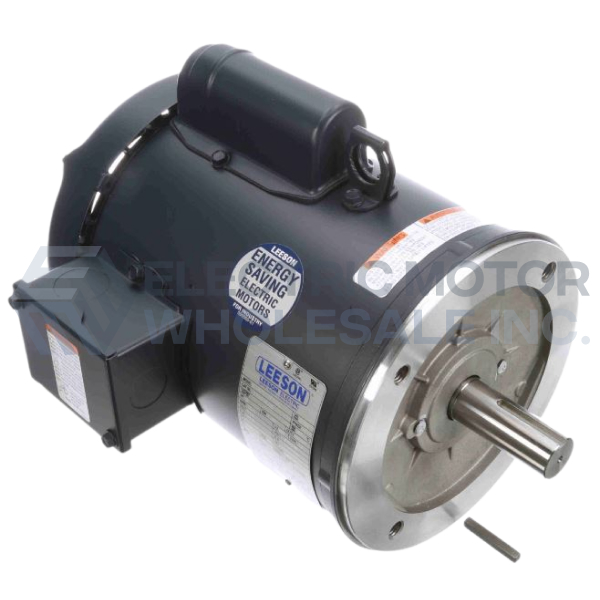

2HP LEESON 1740RPM 182TC TEFC 1PH MOTOR 131516.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 131516.00
Stock # 131516
Price: $664.00
Compare At: $1,675.00
