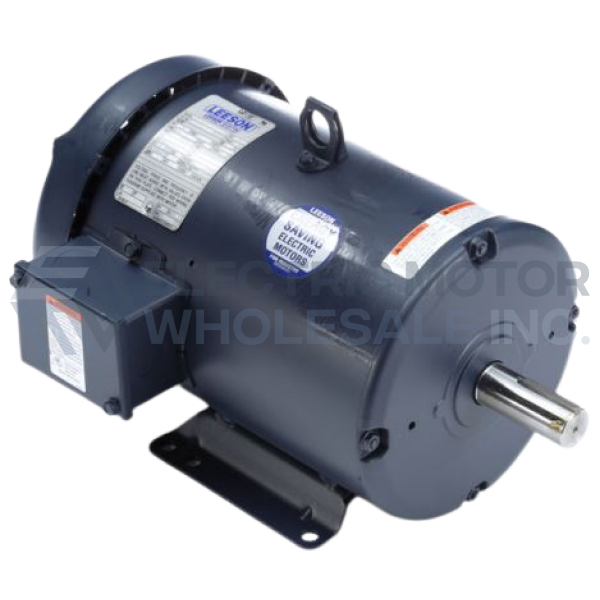

3/1.5HP LEESON 1725/850RPM 184T TEFC 208-230V 3PH MOTOR 131472
|LEESON Catalog Number:||131472.00|
|Ship Weight:||83 lbs.|
This LEESON Motor Can ONLY Ship Ground!
For expedited needs please contact our sales team for freight options.
APPLICATIONS: LEESON Two Speed One Winding Constant Torque Electric Motors are designed for use in applications in which multiple speeds are required.
Constant Torque motors are capable of developing the same torque for all speeds. Their horsepower ratings vary directly with the speed. Constant torque motors are used on mixers, compressors, conveyors, printing presses, extractors, feeders and laundry machinery.
Constant Horsepower motors develop the same horsepower at all operating speeds, and the torque varies inversely with the speed. These motors are often used on machine tools, such as drills, lathes, punch presses and milling machines.
|F.L. Amps||7.6||F.L. Amps||F.L. Amps||6.9|
|S. F Amps||S. F Amps||S. F Amps|
|Max Amb||40||Design||NO DESIGN CODE||Code||G|
|Eff 100%||Eff 75%||PF|
|CC Number||CE||No||Bearing PE||6206|
|Load Type||Inverter Type||Speed Range||NONE|
|Motor Wt.||83 LB||Enclosure||TEFC||Lubrication||POLYREX EM|
