5/1.2HP LEESON 1740/860RPM 184T TEFC 208-230V 3PH MOTOR 131469

LEESON Catalog Number:  131469.00
Description:  5/1.2HP,1740/860RPM,184T,TEFC,208-230V,3PH,60HZ,2-SPEED
Ship Weight:  97 lbs.

This LEESON Motor Can ONLY Ship Ground!
For expedited needs please contact our sales team for freight options.

APPLICATIONS: LEESON Two Speed One Winding Variable Torque Electric Motors are designed for use in applications in which multiple speeds are required.

Variable torque motors have horsepower ratings that vary as the square of the speed, while torque varies directly with the speed. These motors are typically used on applications such as fans, blowers and centrifugal pumps.

Constant horsepower motors develop the same horsepower at all operating speeds, and the torque varies inversely with the speed. These motors are often used on machine tools, such as drills, lathes, punch presses and milling machines.

Volts 208-230 Volts   Volts 208-230
F.L. Amps 13 F.L. Amps   F.L. Amps 5
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60/60
HP 5 Duty CONTINUOUS TYPE TF
KW 3.73 Model # C184T48FB62C
Frame 184T Serv. Factor 1.0 Phase 3
Max Amb 40 Design NO DESIGN CODE Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE 6205
CC Number   CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 97 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation REV

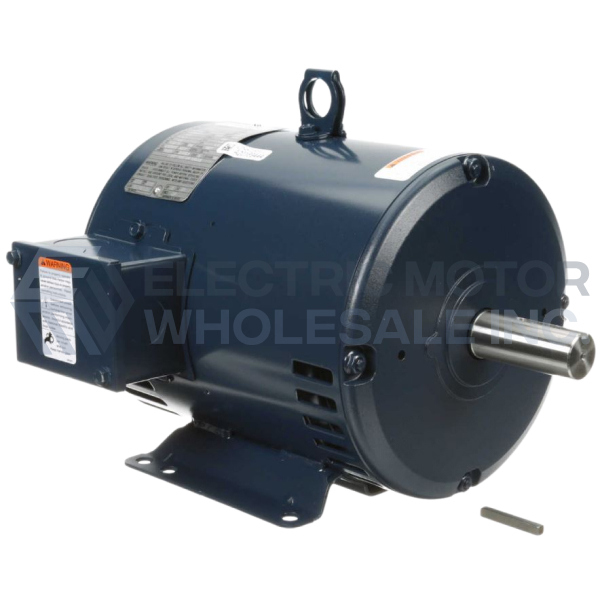

5/1.2HP LEESON 1740/860RPM 184T TEFC 208-230V 3PH MOTOR 131469
Click Image to Enlarge
Manufacturer Part Number: 131469.00
Stock # 131469
Price: $764.00
Compare At: $1,928.00
