1.5HP LEESON 1750RPM 145TC TEFC 180VDC MOTOR 128000

LEESON 128000.00 1.5HP NEMA High voltage permanent magnet DC motors are typically used with and SCR (thyristor) controller in applications requiring adjustable speed and constant torque throughout the speed range. They are also widely used in applications requiring dynamic braking or adjustable speed/reversing capabilities.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

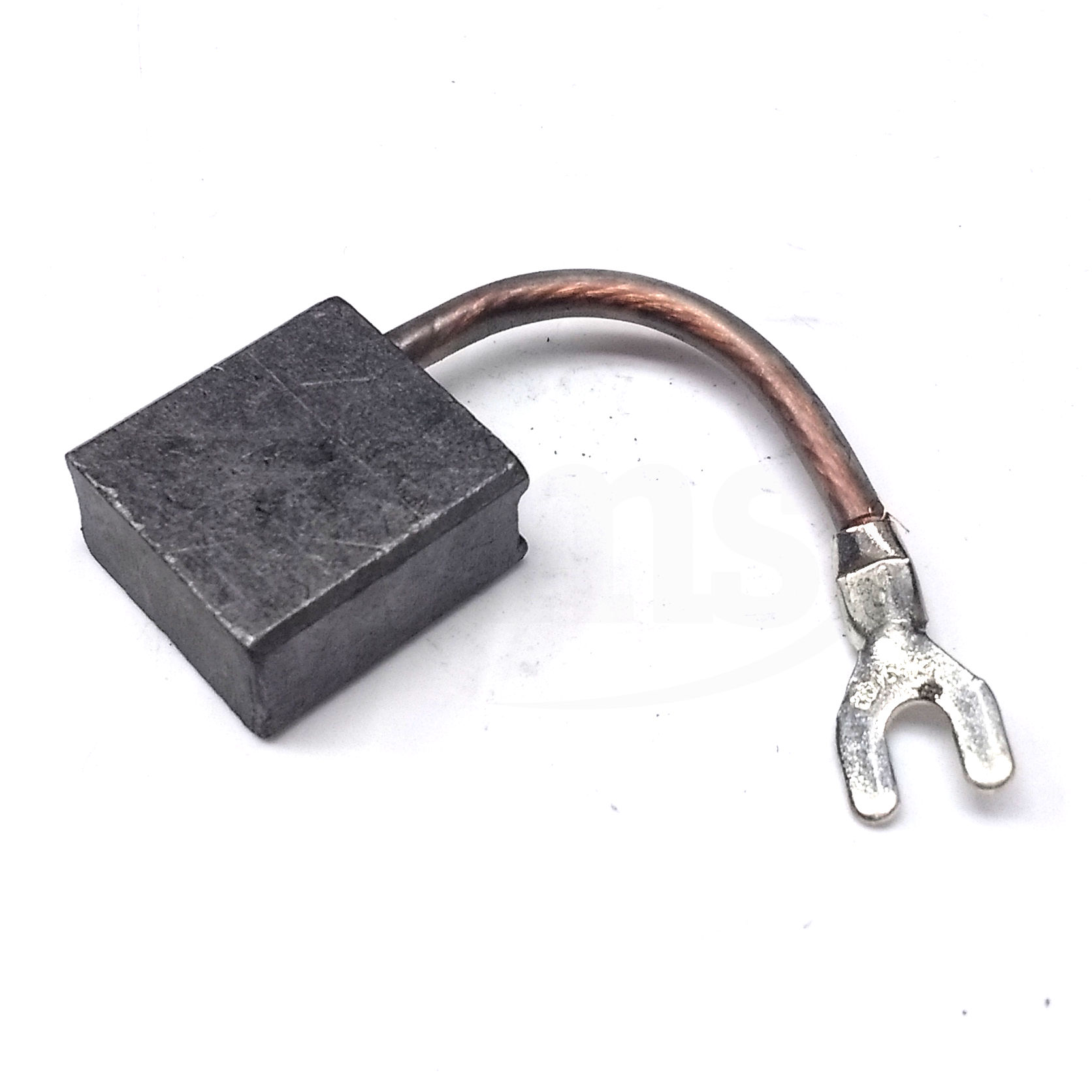

Mechanical Specifications: Low profile space-saving design. Unique brush holder design provides easy access to brushes and integral constant pressure brush/spring assembly for servicing. Large oversized brushes assure longer brush life. Heavy-duty, stamped steel, bolt-on base (removable). NEMA C face mounting at no additional cost. Rugged die cast aluminum endshields with cast iron bearing inserts. Permanently lubricated sealed ball bearings. May be converted NEMA 48 base using a modification kit.

Electrical Features: Input power of 115 or 230 volts rectified AC when used with an appropriate SCR control. Linear speed/torque characteristics over entire speed range. High starting torque for heavy load applications. Capable of dynamic braking for faster stops. Reversible rotation with simple two-lead connection.

These motors may also be used with PWM (pulse width modulated) type DC adjustable speed drives at a higher HP rating. See chart above for re-rating data.

RPM 1750 HP 1.5 Serv. Factor 1.0
KW   Form Factor 1.38 Amps 7.5
Model # C145D17FK2 Form Factor 2   FLA2
Volts 180 Frame 145TC

Max Amb 40 Duty CONT TYPE DF
Insul Class H Enclosure TEFC Bearing OPE 6203
Protection NOT Protector   Bearing PE 6205
EFF 79.3% Torque 54 LB-IN
UL Yes CSA Yes CE No
Motor Wt. 73 LB Nameplate 080209 Lubrication POLYREX EM
Carton Label Leeson Gen Purpose
Assembly   Mounting C-Face Rigid Rotation RECONN
Winding D6323 Ext. Diag.   Ext. Diag2
GROUP 1 B Shaft Dia. 7/8 IN Packaging 307032.62
1.5HP LEESON 1750RPM 145TC TEFC 180VDC MOTOR 128000
Click Image to Enlarge
Manufacturer Part Number: 128000.00
Stock # 128000
Price: $943.00
Compare At: $2,483.00
