1.5HP LEESON 3490RPM 143JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR 122188.00

1.5HP LEESON 3490RPM 143JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR 122188.00

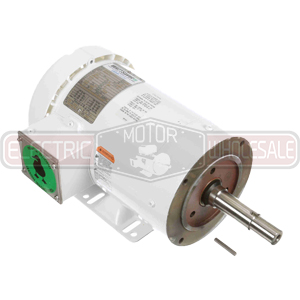

Picture is for reference only.

Part Number:

122188.00

Model/Spec Number:

C143T34WK10

Manufacturer:

Leeson Obsolete
122188.00 LEESON 1.5HP Three Phase White Duck Washguard Epoxy JM Pump Motor is designed for demanding pump applications requiring a JM shaft in wet, humid areas. Designed to meet the industrial washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.

Item Discontinued

Click below to request an agent review potential options.

Weight:

47 lbs

Dimensions:

12 x 22 x 12 inches

HS Code:

8501.52.4000

UPC:

691720052044

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

1.5

Output KW:

1.1

Output RPM:

3490

Frame Size NEMA:

143JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

Product Information Packet
