2HP LEESON 1740RPM 145TC TEFC 230V 3PH MOTOR 122128.00
2HP LEESON 1740RPM 145TC TEFC 230V 3PH MOTOR 122128.00

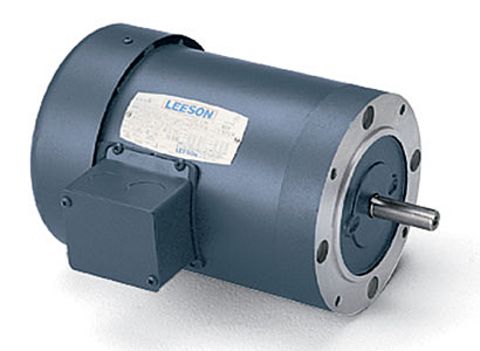

Picture is for reference only.
Part Number:
122128Manufacturer:
Leeson ObsoleteManufacturer Part Number:
122128.00This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
12 x 22 x 12 inchesTechnical Details
Specifications
Application: | General Purpose |
Output HP: | 2 |
Output RPM: | 1300-1800 (4P) |
Frame Size NEMA: | 143-5TC |
Mount NEMA: | C Face No Base |
Enclosure NEMA: | TEFC |
Voltage: | 230 |
Frequency (Hz): | 60 |
Efficiency: | IE2: High Eff. |
Thermal Protection: | None |
Documentation
Additional Information
| Catalog Number: | 122128.00 |
| Model Number: | C145T17FC105 D |
| Description: | 2HP,1740RPM,145TC,TEFC,230VAC,3PH,60HZ |
| Ship Weight: | 44 lbs. |
| Volts | 230 | Volts | N/A | Volts | N/A |
| F.L. Amps | 5.6 | F.L. Amps | 0.00 | F.L. Amps | 0.00 |
| S. F Amps | 6.4 | S. F Amps | 0.00 | S. F Amps | 0.00 |
| RPM | 1800 | Hertz | 60 | ||
| HP | 2 | Duty | CONTINUOUS | TYPE | TF |
| KW | 1.49 | Model Number | C145T17FC105D | ||
| Frame | 145TC | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | L |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 84 | Eff 75% | PF | 75 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | NONE | CE | Yes | Bearing PE | 6205 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 44 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | N/A | Mounting | ROUND | Rotation | REV |
