1HP LEESON 1800RPM 143JM DP 3PH MOTOR 122115.00

Catalog Number:  122115.00 - FREE Ground Shipping USA
Model Number:  C143T17DK8
Description:  1HP,1800RPM,143JM,DP,3PH,60HZ,JM PUMP,WATTSAVER
Ship Weight:  41 lbs.

LEESON 3-Phase Premium WATTSAVER Pump Motors are designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump Shaft.

FEATURES:

  • Made in USA
  • Steel frame
  • Open drip-proof construction
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • High efficiency copper windings with NEMA 1.15 service factors
  • Uses drip cover kit 175932.00
  • UL and CSA recognized designs
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 3.2-3 F.L. Amps 1.5 F.L. Amps 3/1.5
S. F Amps 3.6-3.3 S. F Amps 1.65 S. F Amps
RPM 1800 Hertz 60/50
HP 1 Duty CONTINUOUS TYPE TD
KW .75
Frame 143JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code N
Insul Class F Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75%   PF 71
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number CC005A CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 46 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-1 Mounting RIGID Rotation REV
Assembly Shaft Dia.   Ext. Diag. A-EE7308-REGAL
Cust Part No   Outline A-100130LE-906 Ext. Diag2
Packaging F Outline Dash No   Winding ZT4259
Carton Label       GROUP :

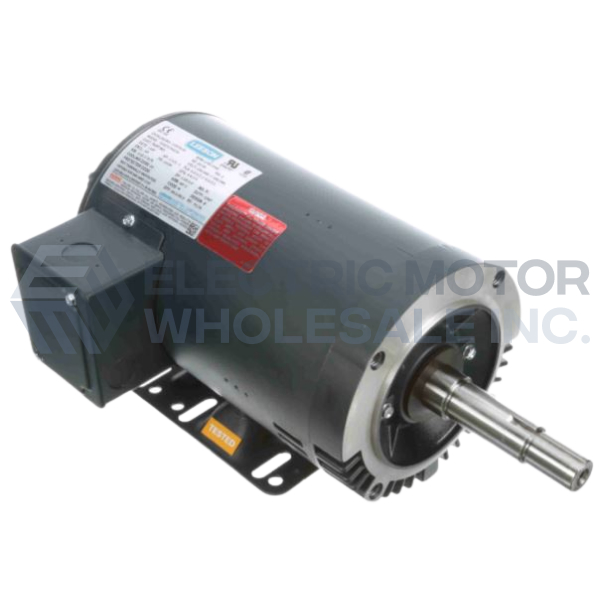

1HP LEESON 1800RPM 143JM DP 3PH MOTOR 122115.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 122115.00
Stock # 122115
Price: $283.00
Compare At: $830.00
