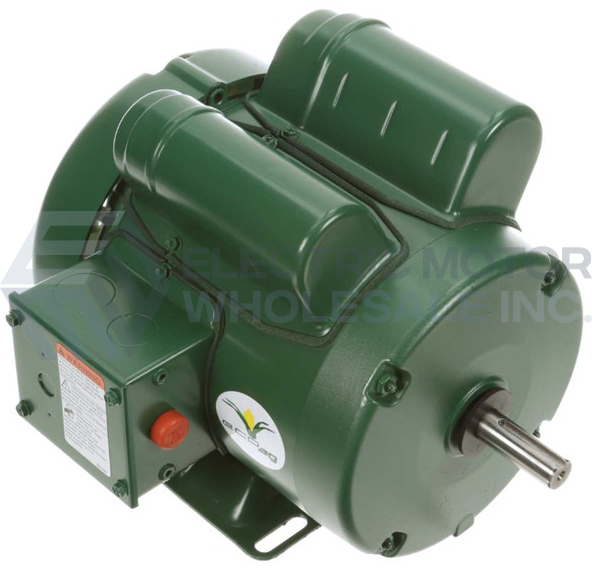

2HP LEESON 1725RPM 145T 1PH ECO-AG MOTOR 121975.00

Catalog Number: 121975.00 Made in USA
Model Number: M145K17FB29
Description:  2HP,1725RPM,145T,TEFC,1PH,60HZ,PREMIUM
Ship Weight:  44 lbs.

APPLICATIONS: For use where exposure to water, dust and dirt exists. Ideally suited for use Farm / Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders, and other demanding farm duty equipment.

FEATURES:

  • Made in USA
  • Premium efficient
  • Steel frame construction
  • Capacitor start/capacitor run design for reduced amperage
  • Up-to 22% higher efficiency than standard Ag Motors
  • Sealed bearings
  • Shaft flinger
  • High starting torque
  • Manual overload protected
  • Condensation drains
  • 3 year warranty
Volts 230 Volts   Volts
F.L. Amps 8.2 F.L. Amps   F.L. Amps
S. F Amps 9.4 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE KF
KW 1.49 Model # M145K17FB29A
Frame 145T Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class F Protection MANUAL Therm.Prot. CED1797
Eff 100% 85 Eff 75%   PF 94
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 44 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
Assembly 042540 Shaft Dia. 7/8 IN Ext. Diag. 005056.03
2HP LEESON 1725RPM 145T 1PH ECO-AG MOTOR 121975.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121975.00
Stock # 121975
Price: $342.00
Compare At: $1,434.00
Quantity:
