3HP LEESON 1800RPM 145T TEFC 3PH MOTOR 121944.00

Catalog Number: 121944.00 - FREE Ground Shipping in USA
Model Number: C145T17FB92
Description:  3HP,1800RPM,145T,TEFC,3PH,FEATHER PICKER
Ship Weight:  45 lbs.
LEESON Three Phase Feather Picker Motor is a replacement motor used in poultry feather picker machines.

Features:

  • Inverter Duty Only
  • Made in USA
  • Durable rolled steel frame with base
  • 7/8" Keyed output shaft
  • Phosphatized or stainless steel shaft with seal
  • Extra high breakdown torques

Washguard Features:

  • The original moisture-shedding "duck" motor
  • USDA-approved, high-gloss, white epoxy finish
  • Frame, base, endshields, rotor, and interior components are protected by enamel and polyester compounds
  • High temperature, moisture resistant IRIS® insulation system
  • Cast, oversized conduit box with tough, high-temperature nitrile gaskets and stainless-steel cover and hardware
  • Excellent for applications requiring a motor that is "tropicalized"
  • Double-sealed, oversized bearings
  • Stainless-steel or white polypropylene fan guard on all Washguard frames.
  • Stainless-steel, “full-fact” nameplate
  • Four condensate drains in each endshield
  • Meets IP55 enclosure protection
Volts 208-230 Volts 460 Volts
F.L. Amps 8.9-8.6 F.L. Amps 4.3 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 3 Duty CONTINUOUS TYPE TF
KW 2.24
Frame 145T Serv. Factor 1.0 Phase 3
Max Amb 40 Design C Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75%   PF 79
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 40 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting RIGID Rotation REV
Assembly   Shaft Dia. 7/8 IN Ext. Diag. 005010.01

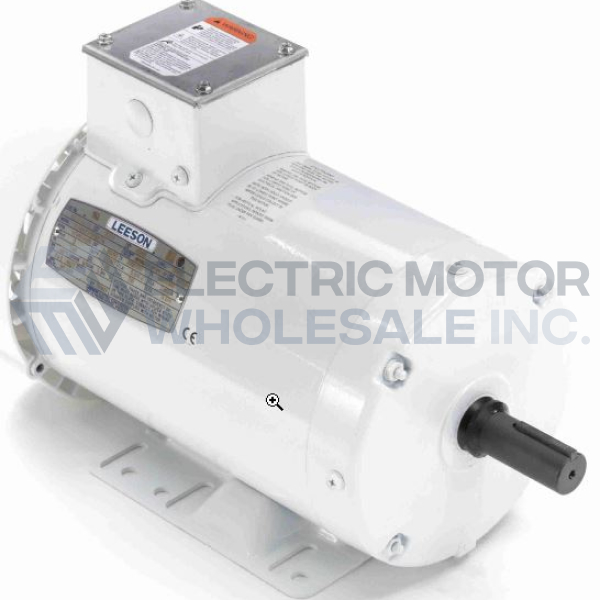

3HP LEESON 1800RPM 145T TEFC 3PH MOTOR 121944.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121944.00
Stock # 121944
Price: $455.00
Compare At: $1,259.00
